Platform Integration Overview

MasterCard has developed a suite of digital wallet services that form the foundation for delivering 1) our proprietary reference MasterPass^TM by MasterCard^® wallet product, 2) a customizable version of our proprietary product and 3) a discrete bundle of authentication and connection services that Partners can incorporate into their own user interfaces to enable those Partner products to utilize the MasterPass Acceptance Network.

This document provides instructions for Partners to integrate with the MasterPass APIs.Partners choosing this integration strategy must implement their own user interface for the MasterPass Partner- hosted wallet workflows. The MasterPass Selector within the widget allows users to select which MasterPass wallet they would like to use for a particular transaction (consumers may wish to use different wallets for different purposes). The Shopping Cart within the widget provides a summary of the checkout that is in progress. The wallet provider should integrate with the guidelines for the Lightbox user interface. It will manage display of the wallet selector and shopping cart functionality (previously handled by the Flyout Widget for legacy wallets). Dimensions along with screen areas will be discussed later in this guide.

As an option, the Partner-hosted wallet also allows Partners to implement their own wallet user interface, and gives them the option to store and manage card, address and related data for their consumers or utilize the MasterPass Wallet Storage API's. There may be circumstances where a Partner would not want to store specific wallet data because of infrastructure resource limitations or compliance implications. MasterPass offers the ability for Partners to store data such as Card and Billing information, Shipping addresses and Loyalty program details. This data can be fully managed by the Partner. The Wallet Storage APIs include four services. These are REST services with full CRUD (Create, Read, Update, and Delete) operations. Individual entities can be maintained through the Card, Shipping Address and Loyalty Program services. The Wallet service must be called first in order to obtain a Wallet identity and it can also be used later on to retrieve the individual entities as a complete set. The specific service interfaces are covered within the later sections of this guide.

Product Design - How to build a Partner-hosted wallet

This section will help the partners build and design their wallets.

Versioning

All partners will need to comply with legacy implementations that merchants can have. For this version, this means that partners will need to make sure that their implementation works with v1 through v6.

Migration for existing Wallet providers and Newly Issued wallet expectations

To comply with the new sets of requirements and upgrade, partners will be expected to build:

- In-app experiences (see pairing, un-pairing, Connect and Express). These sections are marked with 'New for v6' annotation.

- Upgrade to fit with the lightbox experience (see section below) for both lightbox (shown for merchants that have upgraded to v6) and full screen lightbox (shown for merchants using v1 to v5 APIs)

Note: Before an upgrade, a partner wallet will show a fallback User Experience (similar to the current experience already built) for all merchants between v1 and v5 and the Standard checkout for v6. Wallets will be grayed out of the request calls and experiences that they can't manage prior to an upgrade (pairing, un-pairing, Connect and Express) MasterPass User Experiences.

There are a number of experiences that the partners will need to offer:

Registration

From partner's properties

The intent of that experience is to offer a means for consumers to register for the wallet and get fully setup in the wallet. The registration form would collect the necessary information from consumers to setup a wallet for them. Those details may differ per implementation but would at least end with the partner to have collected names, shipping and billing addresses, emails and phone numbers, security parameters (for instance, Security Questions if they are used), an explicit consent to accept Terms & Conditions and Privacy Policies. Those details can be either collected manually or provisioned if the partner can facilitate the User Experience by reducing the data collected.

The cards that consumers want to use would also need to be collected

Loyalty card details can also be collected during registration (optional).

During checkout

The intent for that experience is to offer a way for consumers to get setup and fully registered for the wallet when they started their interactions by shopping online and clicking on the MasterPass button. The details collected would be the same as the above registration but would need to be displayed in a checkout screen and the Optimized Experience screen

Add card and authentication

All cards added to the wallets must be authenticated with card issuers (with the exception of Private label cards). This authentication can take many forms and at least one needs to be completed. Note: requirements for Maestro are specific to that card type.

- Provisioning: Partners may decide to get the card information (16-digit numbers, expiry date and CVC/CVV2 details) directly from the card issuer as a source (either partial or the totally can be provisioned). If a partial provisioning is used, consumers will be asked for the remaining data fields.

-ASI, $0 or small amount authentication using a Payment Gateway: partners can also authenticate cards by sending an Auth message through Payment Gateway. This message can be an ASI, $0 or of a small local currency denomination.

-For Maestro cards (optional)

If the partner wants to enabled Maestro card,

• The cardholder has successfully passed a 3DS authentication check (typically with a zero or with a token value in the amount field of the 3DS payer authentication request, PAREQ), or
• The cardholder has provided MasterPass with the valid activation code given to him/her by the Maestro card issuer (or by another entity working on the issuer's behalf) for this purpose.  Note that this is the approach typically used when the card issuer pre-provisions its cards on MasterPass.
• The cardholder has successfully completed another type of verification mechanism which the issuer has explicitly agreed to use.  Note that any wallet provider wishing to use this verification method must be capable of producing written evidence of explicit issuer agreement for it (for all issuers concerned by this option).
• There can also be country specific authentication methods to certain countries. If you have any doubts please, contact your MasterCard representative.

Pairing

Pairing is a product introduced with our API version 6 which allows a simplified experience tailored for Merchant mobile applications or in-app experience. The experience takes place in 2 stages, the first time that a user goes through a checkout that can be paired; they will be asked for consent to share their details with that merchant. The second time the consumer will go through that experience, they will be benefiting from the simpler experience.

We also have introduced a distinction between 2 types of implementation of that same paired experience:

-"Connect" will allow all merchants to have a simplified experience that still requires an authentication and login by the consumer.

-"Express" will allow approved-by-MasterCard merchants to have an even simplified experience requiring no authentication and login by the consumer. Those merchants will require a separate Security approval and a different legal construct than the Connect merchants.

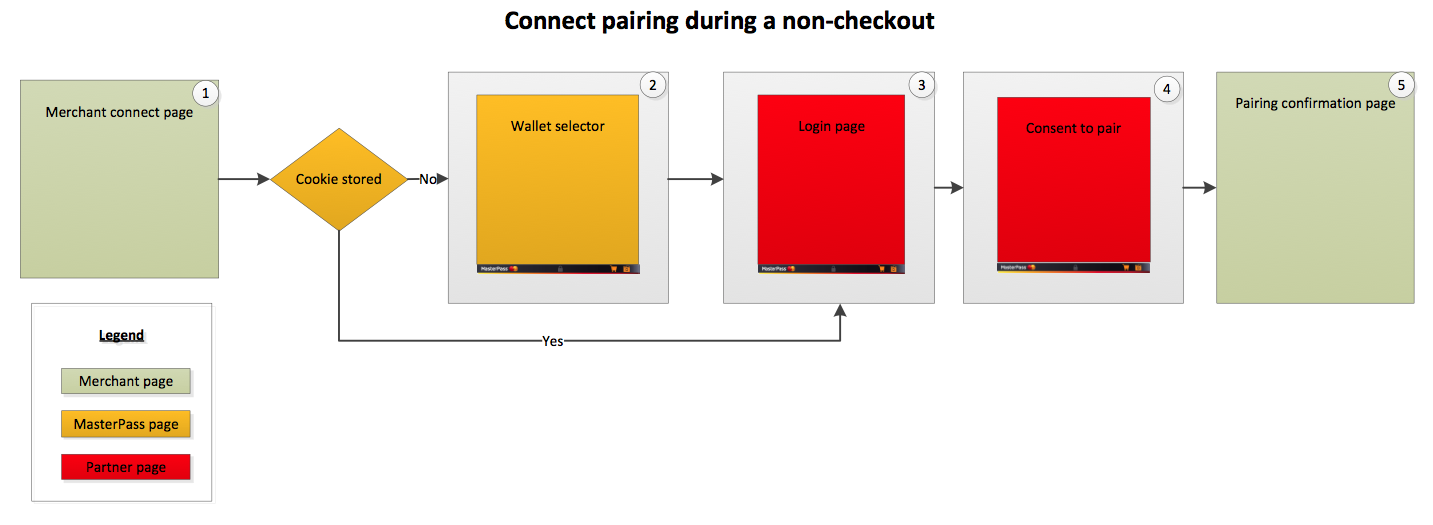

Connect Pairing during a non-checkout (New for v6)

The intent of that experience is to allow a merchant using Connect to pair the consumer with their wallet. This pairing will usually include: a login and consent for consumers to agree to share their details with the merchant.

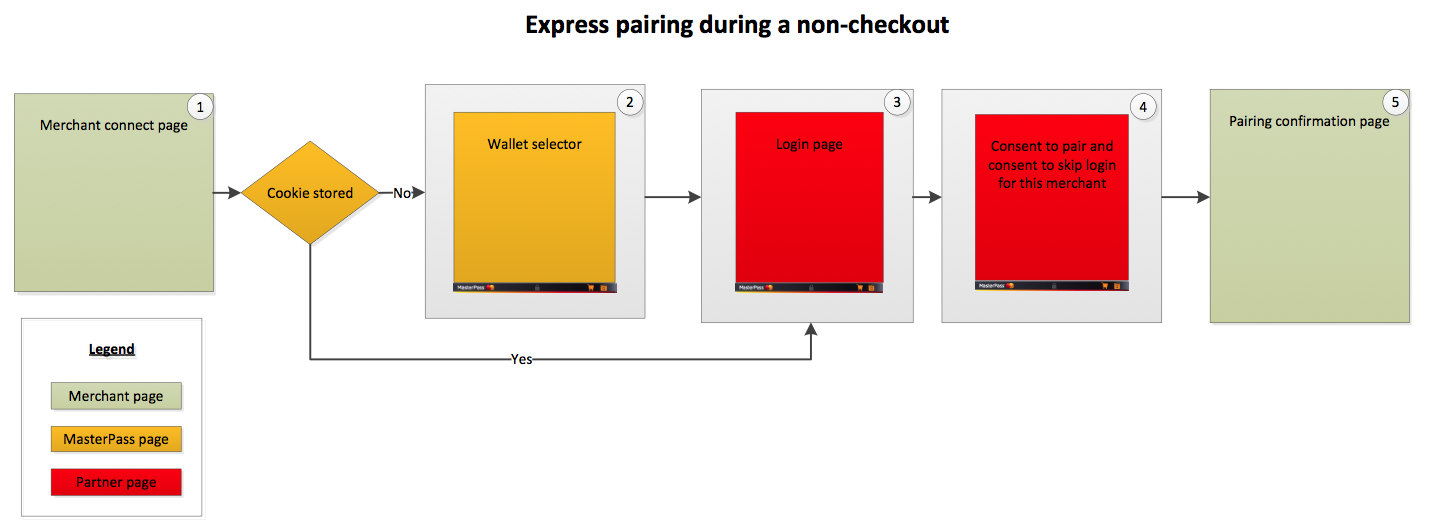

Express Pairing during a non-checkout (New for v6)

The intent of that experience is to allow a merchant using Express to pair the consumer with their wallet. This pairing will usually include: a login, consent for consumers to agree to share their details with the merchant and consent to skip login when using that merchant's checkout.

Checkouts

Standard

Standard checkout is the main User Experience enabled for MasterPass. This would enable users to select and/or verify the payment information they want to use for that transaction: payment card, Shipping address if merchants requires it and loyalty details if merchant require it (optional))

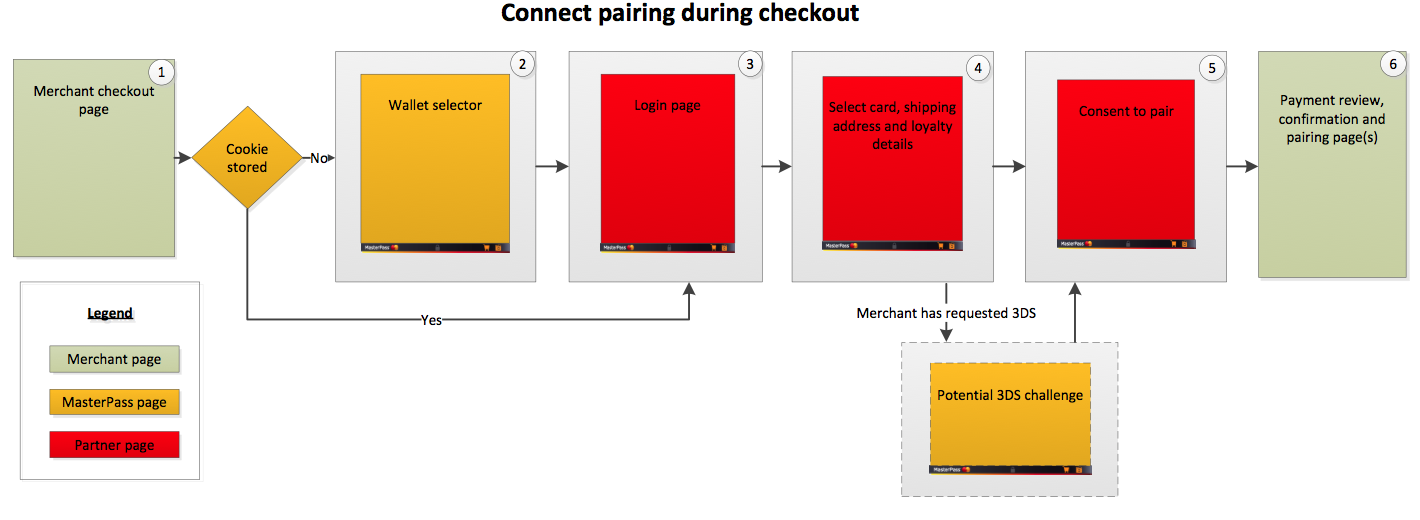

Checkout including a new pairing for Connect (New for v6)

This checkout experience allows consumers to complete transaction and enable a new pairing of their wallet with merchants using Connect

Note: this flow will require the partner to maintain an open session for consumers during the whole flow. For this to work, the partner will not be able to use token as a base to their session management logic.

Checkout including a new pairing for Express (New for v6)

This checkout experience allows consumers to complete transaction and enable a new pairing of their wallet with merchants using Connect.

Note: this flow will require the partner to maintain an open session for consumers during the whole flow. For this to work, the partner will not be able to use token as a base to their session management logic.

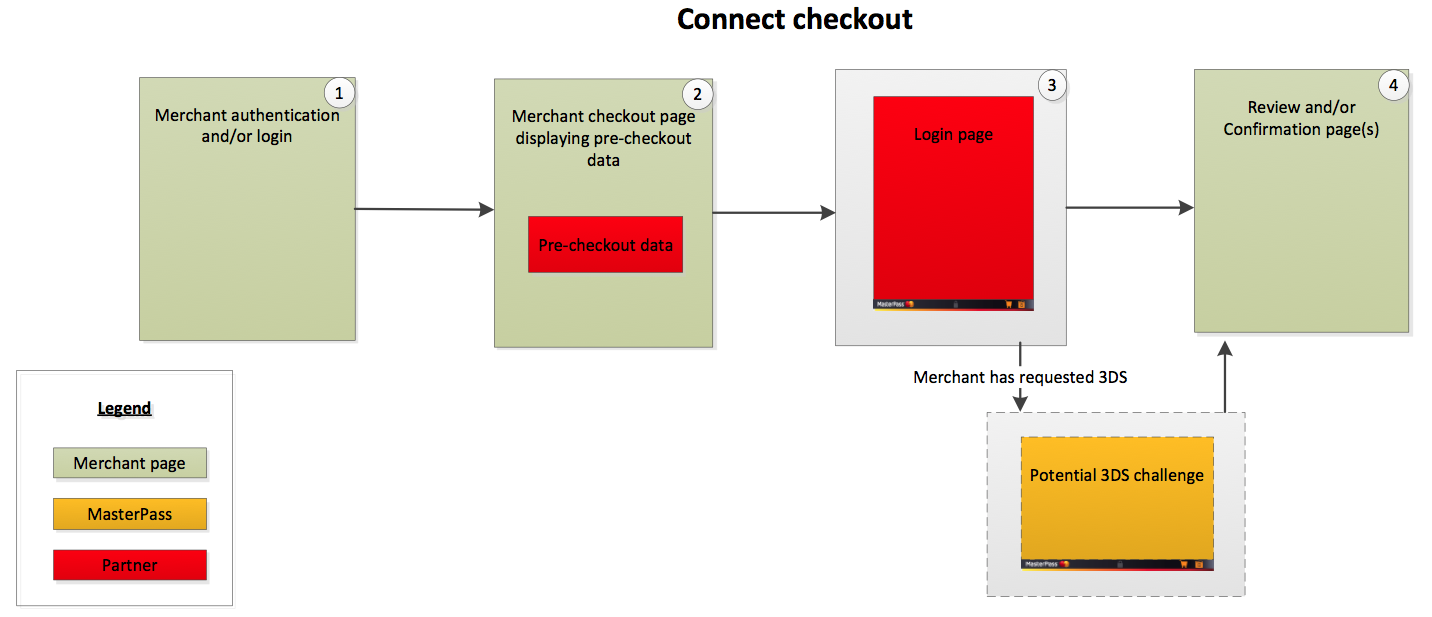

Connect checkout (New for v6)

This checkout experience allows consumers to complete transaction and enable a pairing of their wallet with merchants using Connect

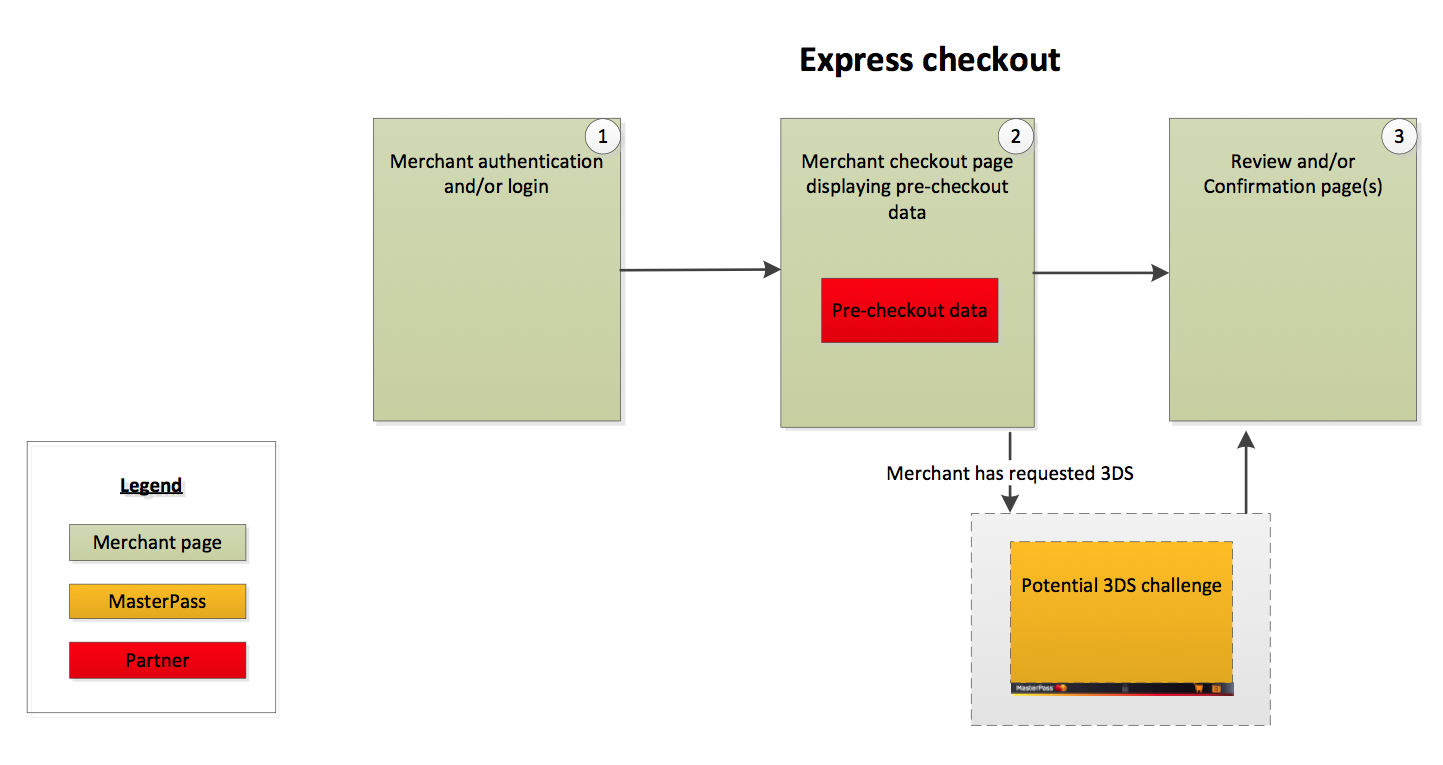

Express checkout (New for v6)

This checkout experience allows consumers to complete transaction and enable a pairing of their wallet with merchants using Express.

Authentication

Partners will also need to insure the integrity and security of their data and interface. Authentication is required at different points in the experiences:

• Login
• • This would allow the user's session management. This should pertain to a multi-factor authentication mechanism (see certification requirements for details)
• Any new card added
• • This would validate the card and allow only existing and validated by card issuer's cards to be added to the wallet.
• Step up (MasterCard can operate an on-behalf service for all Partner's implementations)
• • This would allow to fulfil an incremental validation of the card during checkout and for a specific transaction which should allow for liability shift to be provided to merchants when they require it.

Account management

All account management functionalities below can be enabled through existing user Experience and partner's existing assets. We strongly encourage them to also be easily accessible during a checkout where it makes sense.

The intent of the experience will be to allow consumers to change their details selected during registration (Examples: name, password, security questions).

We mandate that consumers can add at least one card during checkout without getting away from the main checkout flow.

We recommend attaching one Billing address to each new card added and not requiring billing addresses to be selected during each transaction.

All new cards need to be authenticated (please see requirement table in the section below.

This experience allows consumers to manage (add/edit/delete) their cards. We mandate that consumers can add at least one shipping address during checkout without getting away from the main checkout flow.

We recommend validating the addresses where systems exist to do so (for example: AVS in US).

This experience allows consumers to manage their loyalty card and numbers. They should be able to add/edit/delete loyalty numbers for each merchant existing loyalty program.

This experience allows consumers to manage and unpair their Connected relationships with merchants.

Process

In order to implement your wallet, we recommend you to follow the following process:

1. Register on Dev Zone
2. Complete Risk Assessment and Security Due Diligence with your MasterCard representative
3. Develop your wallet
4. Request setup on Sandbox
5. Test your wallet, complete Self-certification and get it approved by MasterCard
6. Make sure that all necessary services are in place (Customer Support)
7. Request production keys
8. Schedule setup in Production
9. Test your wallet again when it is in Production
10. Commercialize your wallet through Marketing

Certification requirements

When your wallet is finalized, it will need to be self-certified. Most of the requirements are written to provide guidance as to what is expected that the wallet would do, give specific guidance as to what would be mandatory and what would be useful best practices. At the end of the day, the partners are responsible for their user experience and implementation but MasterCard would like to ensure consistency of some parts of the experience and security.

How Does a Partner-Hosted Wallet Work?

A partner hosted wallet interfaces with MasterPass to manage customer data in a variety of checkout scenarios and account management.It can use MasterPass to store customer data with the wallet storage APIs.It can supply user data during a standard checkout.It can pair with a merchant for a streamlined checkout experience.It can enable express checkout to allow a 1-click checkout experience for the user to approved merchants.

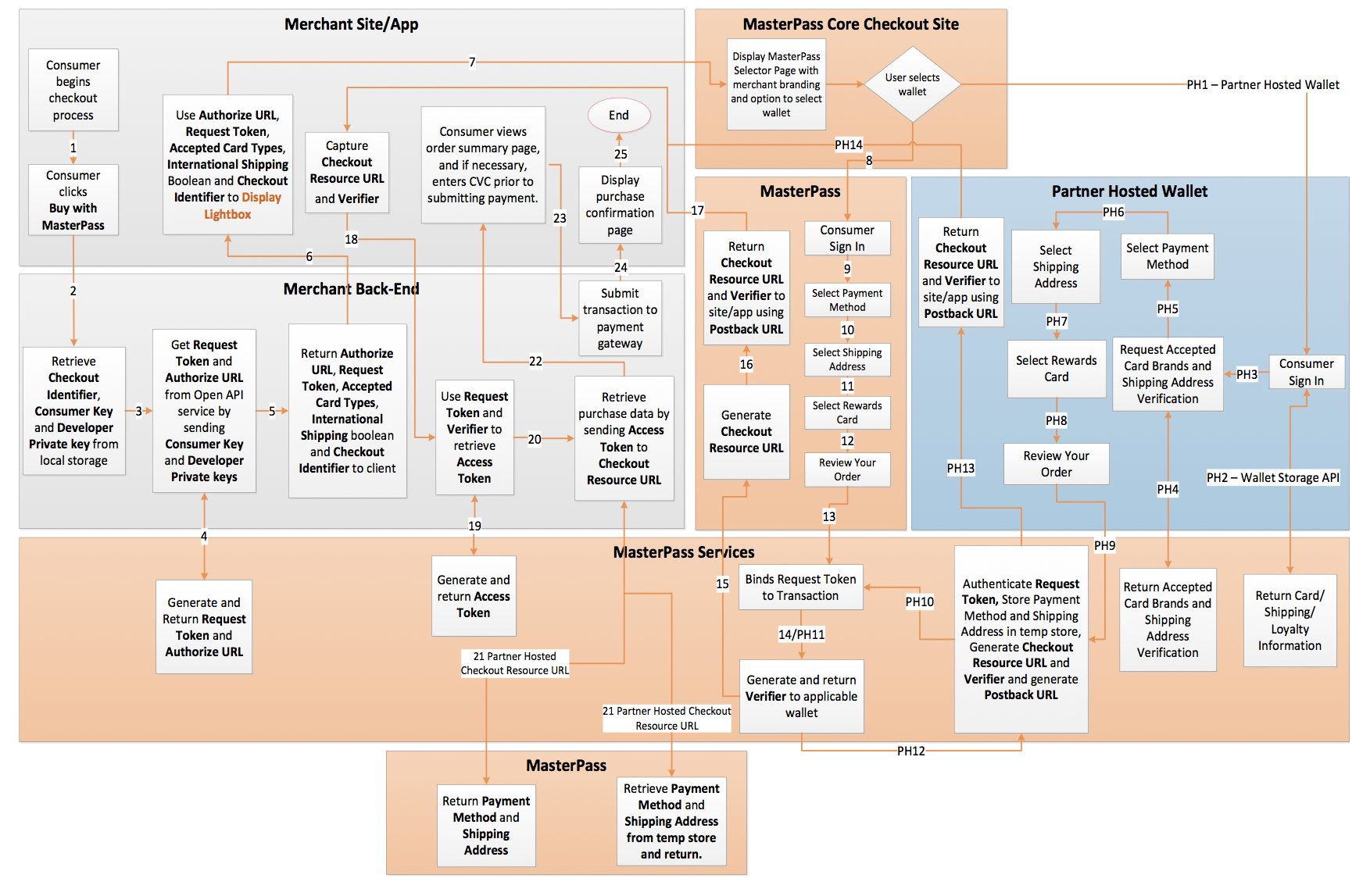

The following diagram details a flow of a checkout transaction using a Partner-hosted wallet. The Partner site is first engaged after the user selects a Partner-hosted wallet in step 8/Ph3. MasterPass will execute the Checkout Initialization exchange with the Partner-hosted wallet in order to start the sign in process. The Partner must present an interface to the user for logging in, selecting payment method and a shipping address (if applicable) and confirming the order. The Shipping Address Verification exchange can be used near step PH6 to confirm that the Merchant is willing to ship to each shipping address. Step PH9 involves the Partner site sending consumer selected card details and shipping information back to MasterPass by executing the Checkout Authorization exchange.

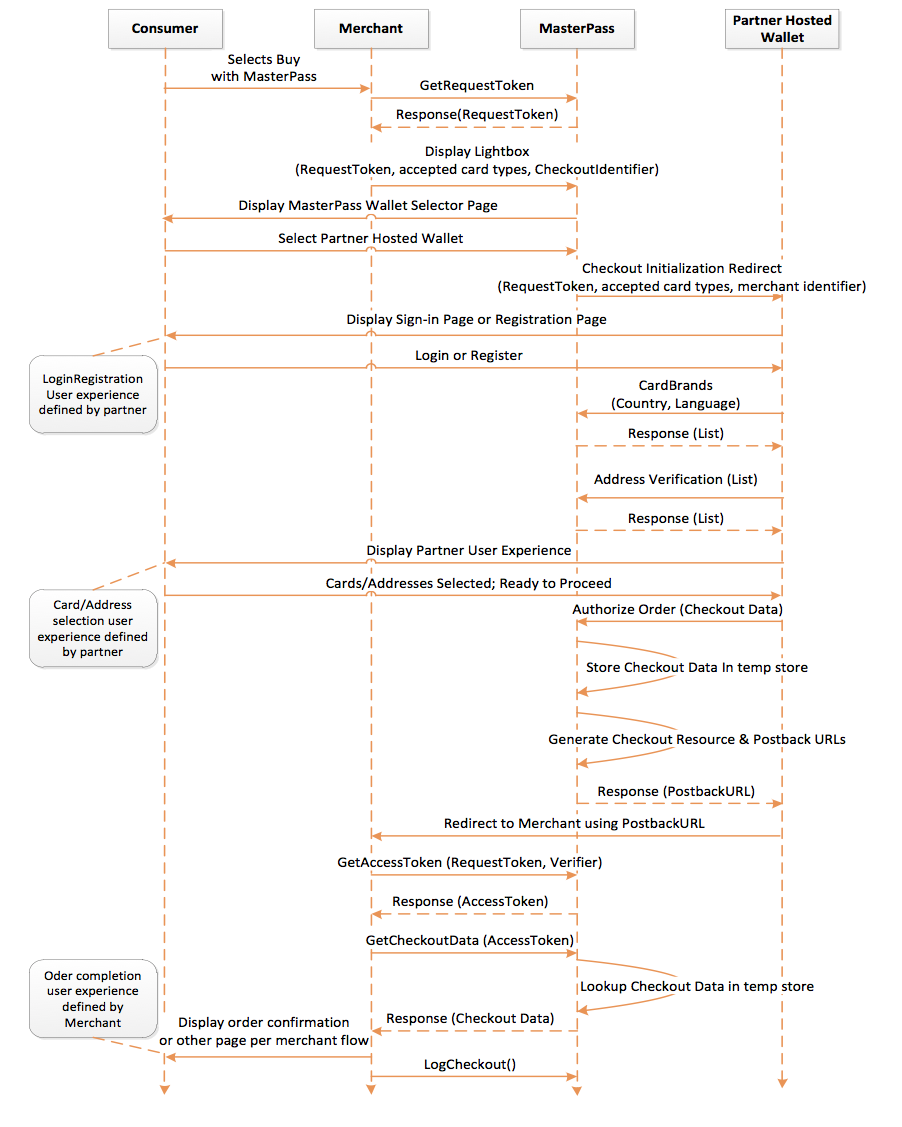

The below sequence diagram provides a different view of the transactions. The "Select MasterPass wallet" step is where MasterPass will redirect the browser to the Checkout Initialization URL. Shipping Address Verification would most likely be used at some point during the Partner-defined user experience.

The Checkout Authorization exchange is then executed in the "AuthorizeOrder" step. The Partner must then respond with a browser redirect in order to send control back to the merchant through the MerchantCallbackURL.

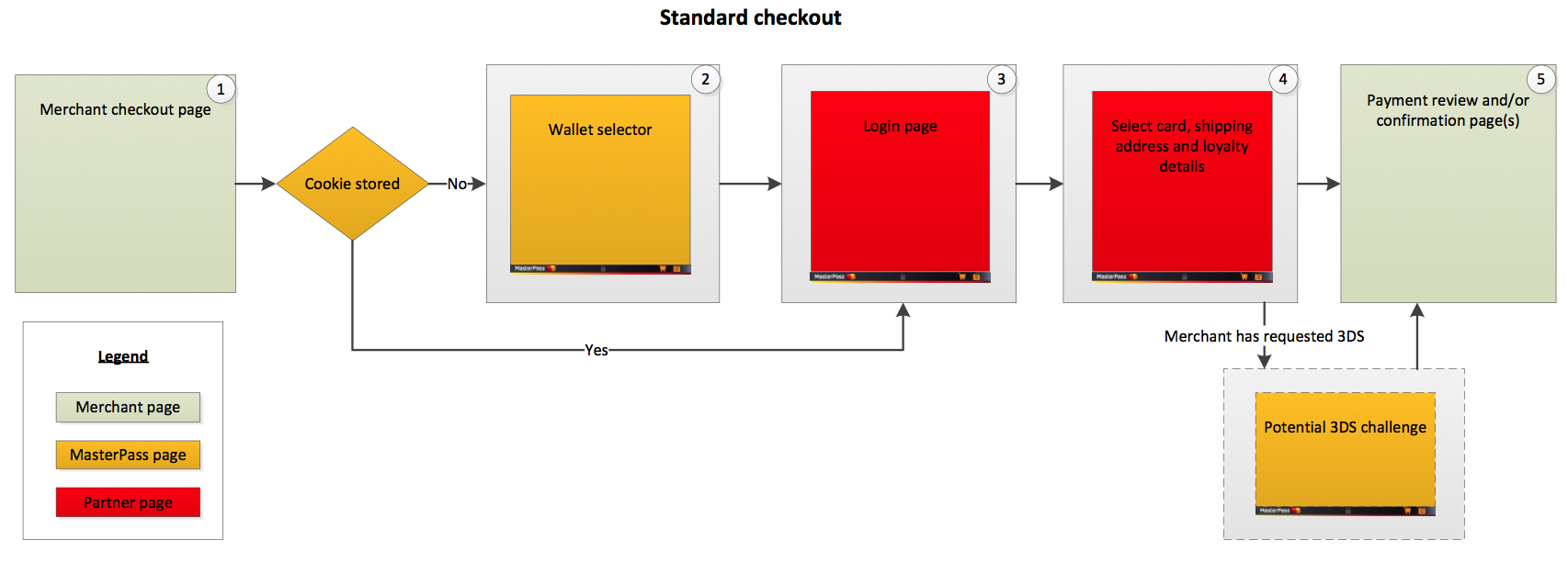

Standard Checkout

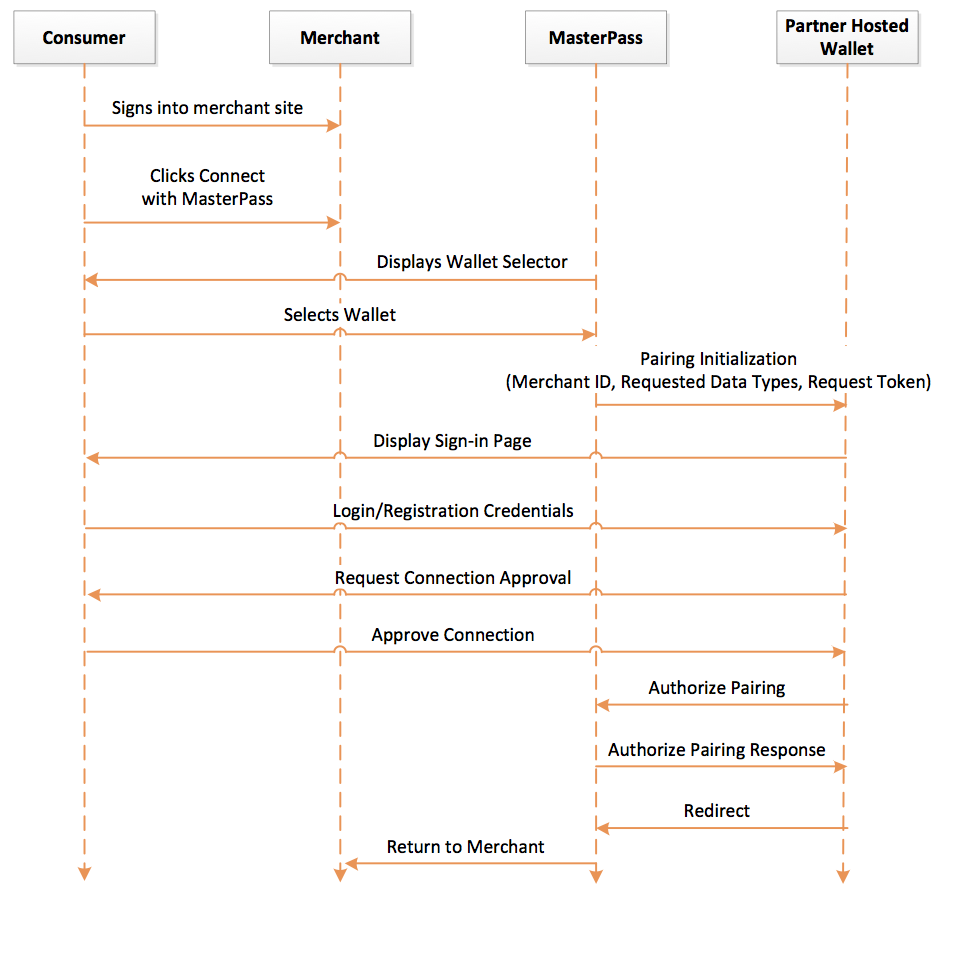

Pairing during non-checkout (Connect and Express) Flow

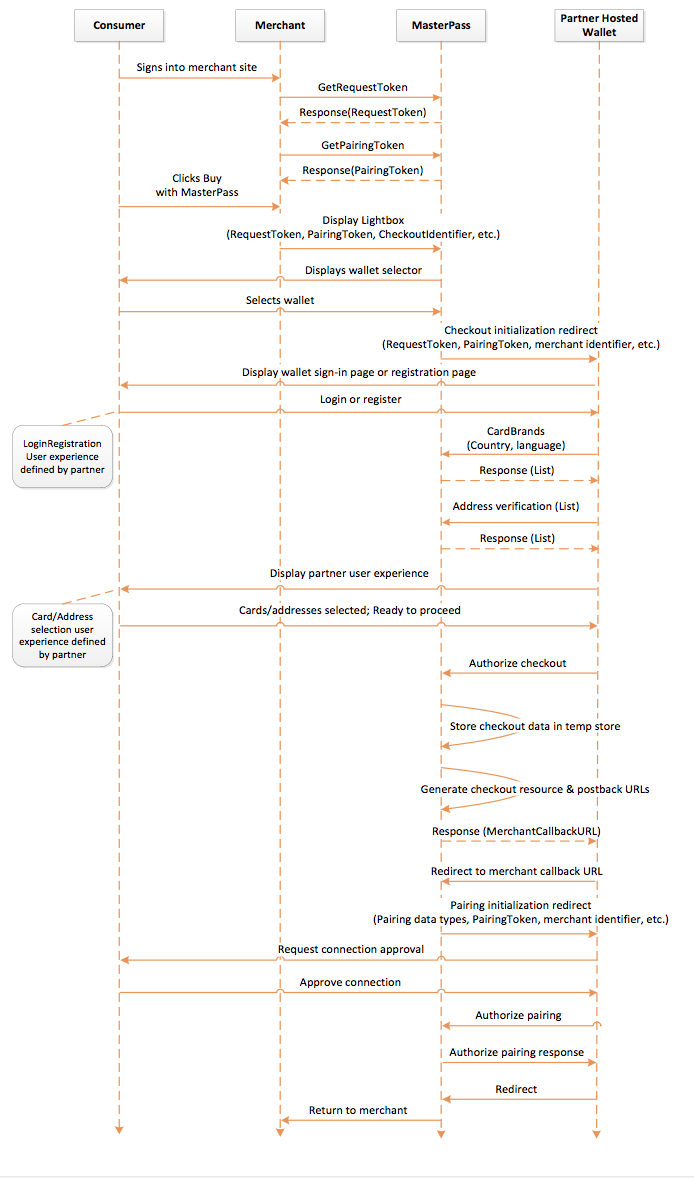

Connect Pairing during checkout flow

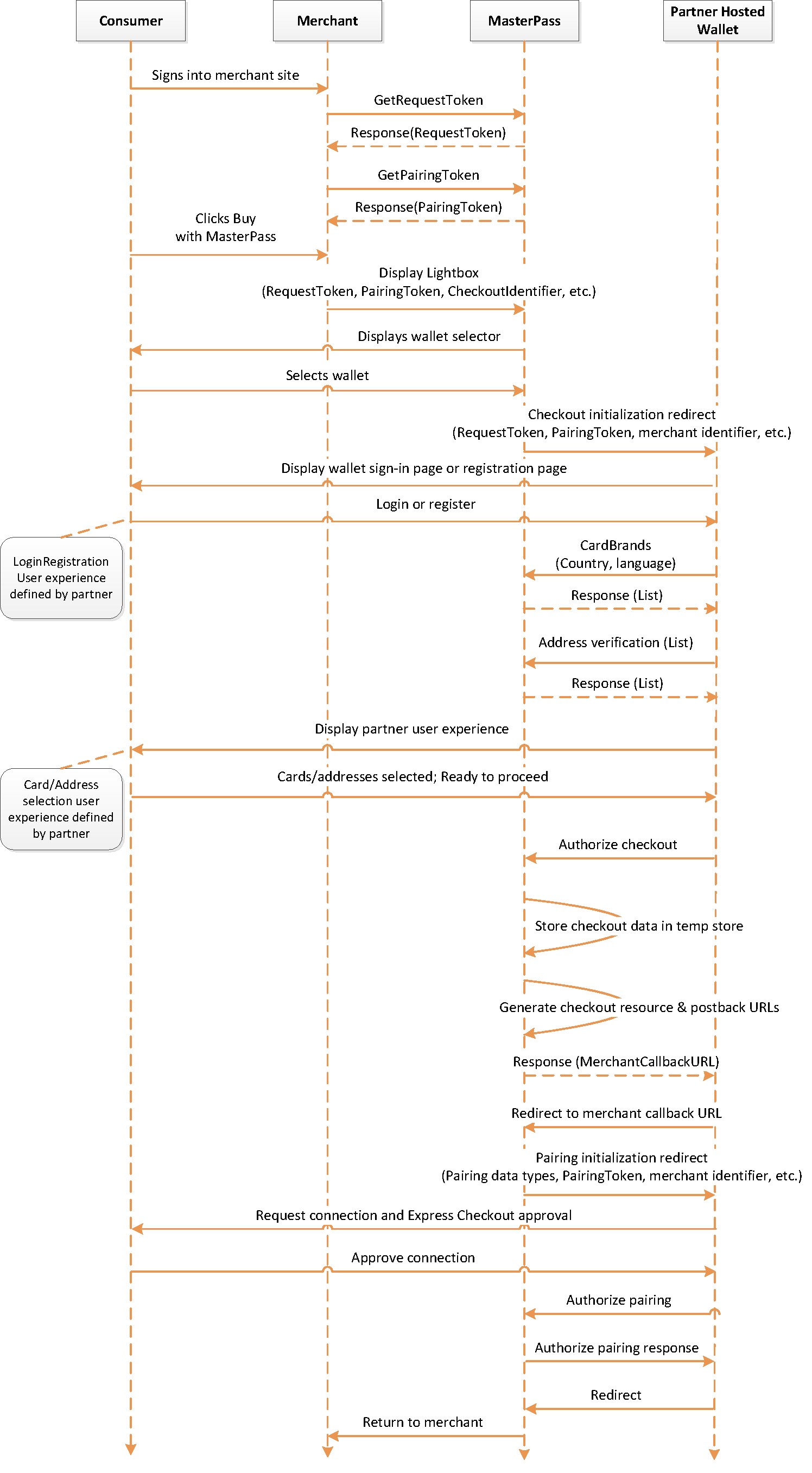

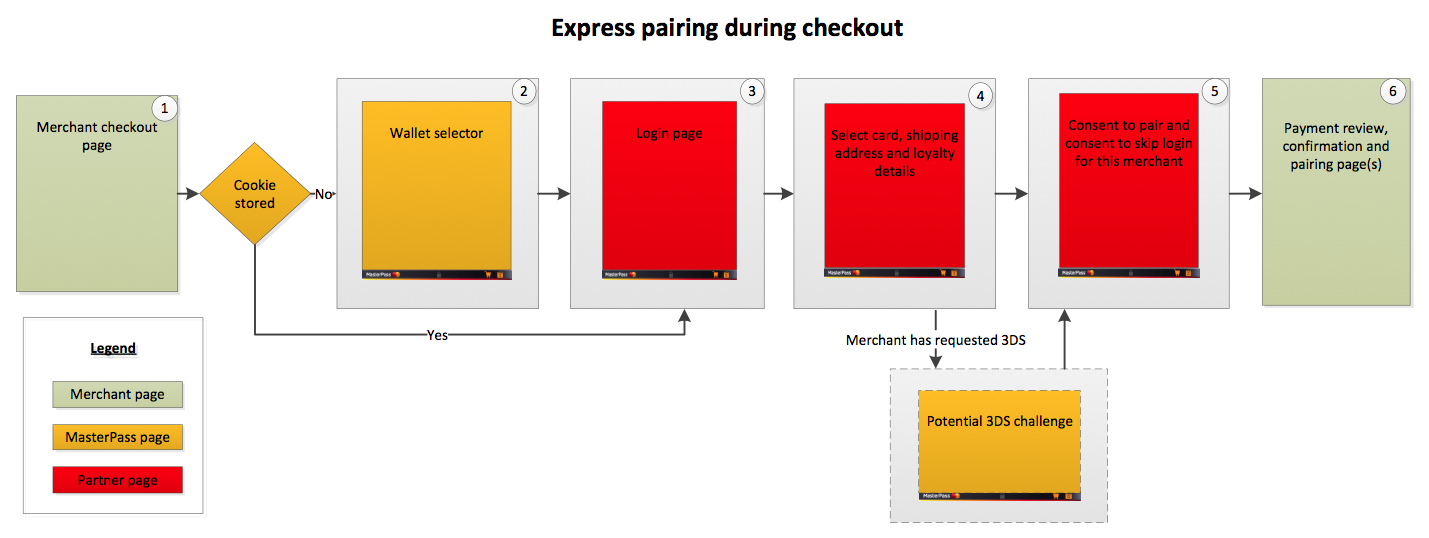

Express pairing during checkout flow

Connect Checkout flow

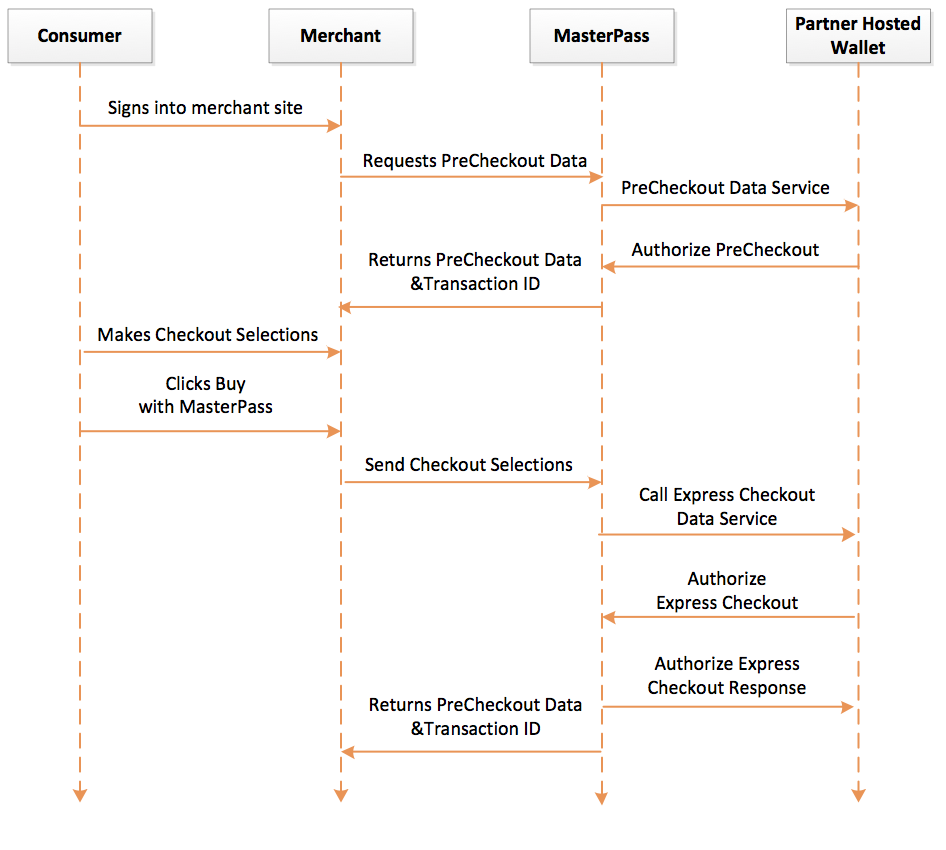

Express Checkout Flow

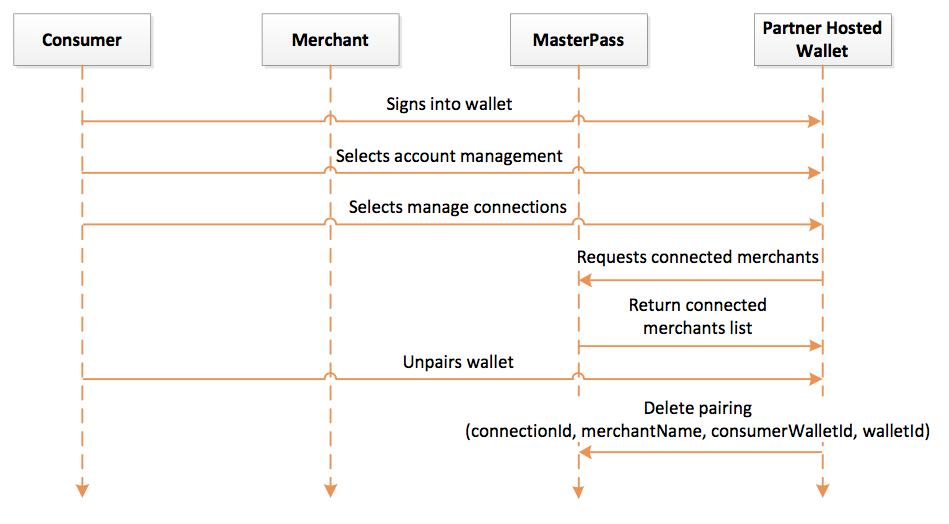

Un-pairing

Definitions

1. Partner - A bank or other MasterCard Partner (Partners do not have to issue cards) providing its users with access to MasterPass capabilities.
2. Partner-Hosted Wallet - A wallet solution hosted by a Partner that is integrated with MasterPass.
3. OAuth - An industry standard security model that allows third party sites to share user data without requiring additional credentials. A Partner-hosted wallet uses this method for securing exchanges with MasterPass.
4. OpenAPI - An industry standard for enabling services to be easily shared across third party providers. A Partner-hosted wallet uses this standard to connect MasterPass with Partner services.
5. ISO 3166 - A standard definition of countries and country subdivisions as maintained by the International Organization for Standardization. MasterPass uses this standard for defining countries and country subdivisions that can be entered into addresses.
6. Country Subdivision - Most countries are separated by internal boundaries such as the states of the United States or the provinces of Canada. These subdivisions are defined by ISO 3166-2 and MasterPass uses these for defining the subdivisions that can be entered into addresses.
7. Personally identifiable information (PII) - User data, such as cards, shipping addresses and loyalty programs that can be stored securely within the MasterPass databases
8. Wallet Storage APIs - The set of OpenAPI transactions for storing a partner consumer's PII data within MasterPass databases

MasterPass User Interface

The MasterPass user interface introduced an optimized User Experience for v6, or Lightbox, floats the MasterPass wallet interface on top of the Merchant's web page through illuminated overlays, and backgrounds dimmed to 0.7 opacity. This modern method allows a consumer to interact with their MasterPass digital wallet without having to leave the merchant's page. MasterPass Lightbox is built in a responsive design style allowing it to respond dynamically to the various screen sizes and orientations.

MasterPass supports the following displays:

• Standard Lightbox display
• Standard full screen display

Legacy User Interface or Fall-back

If a merchant is not yet upgraded and the partner is v6 enabled or the current browser being used is outdated the legacy user interface will be shown as a full screen lightbox.

If a partner requires to build a v1 to v5 wallets, they would need to refer to the respective API Integration guide specs. If need of help to locate such document, please contact your MasterCard representative.

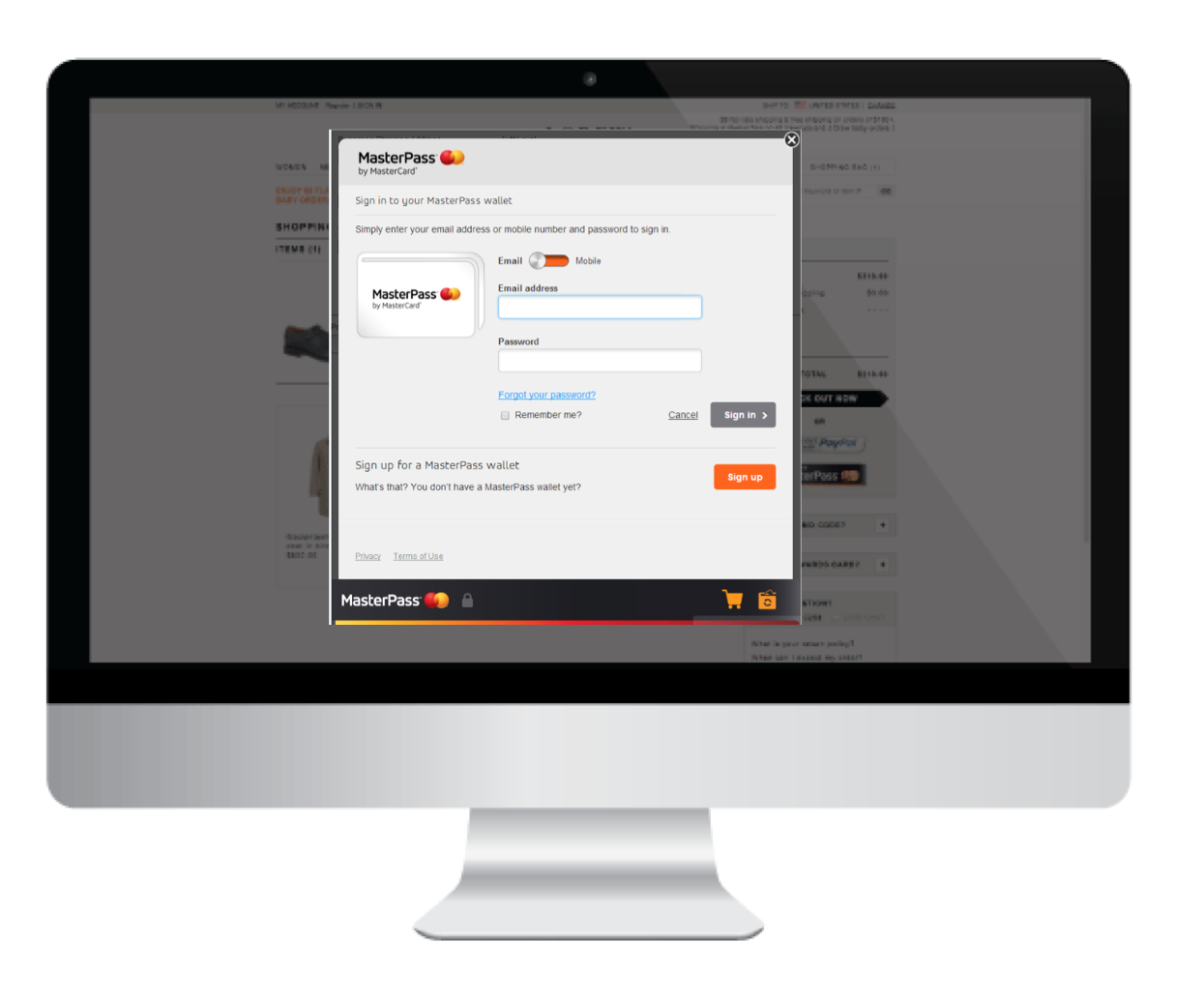

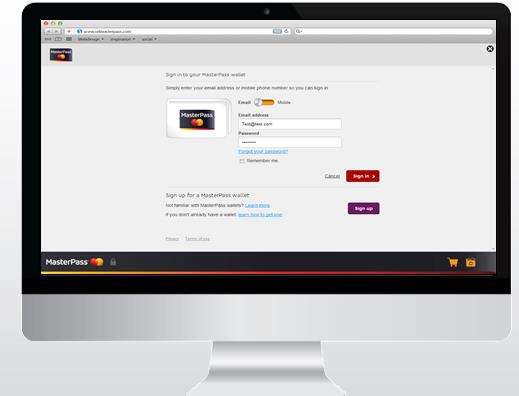

Standard "Lightbox Display" (desktop view)

At full screen, where the browser is set to 100% height and width, the overall Lightbox dimensions are 740 pixels (height) by 700 pixels (width). This is inclusive of the Lightbox header and footer. The interior Lightbox dimensions are 590 pixels (height) by 680 pixels (width). The interior Lightbox dimensions specify the content area within which the Partner can design (see screenshot below).

If the height of the browser is reduced so that the entire Lightbox has a height of 740 pixels and the width is maintained, the content container has the following dimensions: 530 pixels (height) by 680 pixels (width).

If the browser is set to 100% maximum width, but is less than 530 pixels in height (for the content container), vertical scrolling will appear.

If the browser is set to less than 680 pixels in width the Lightbox layout will change to accommodate small screen formats (i.e. phone, smaller tablets). There is a 320 pixel width threshold for the content container.

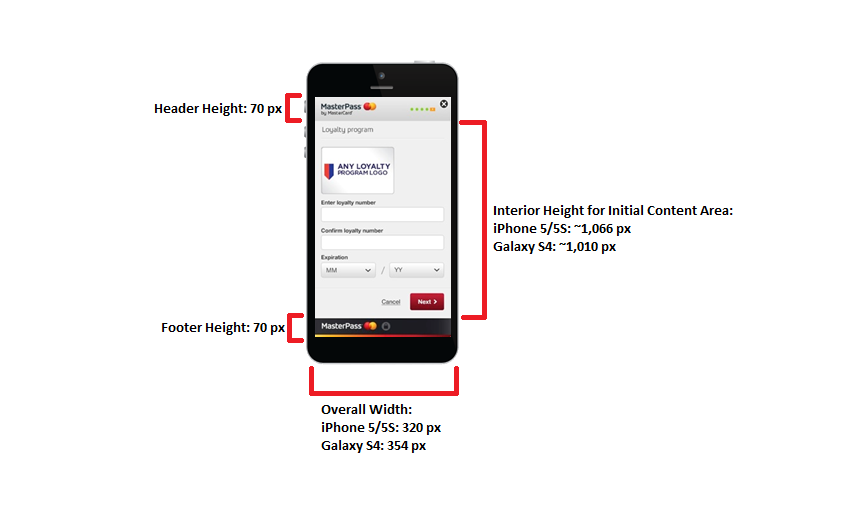

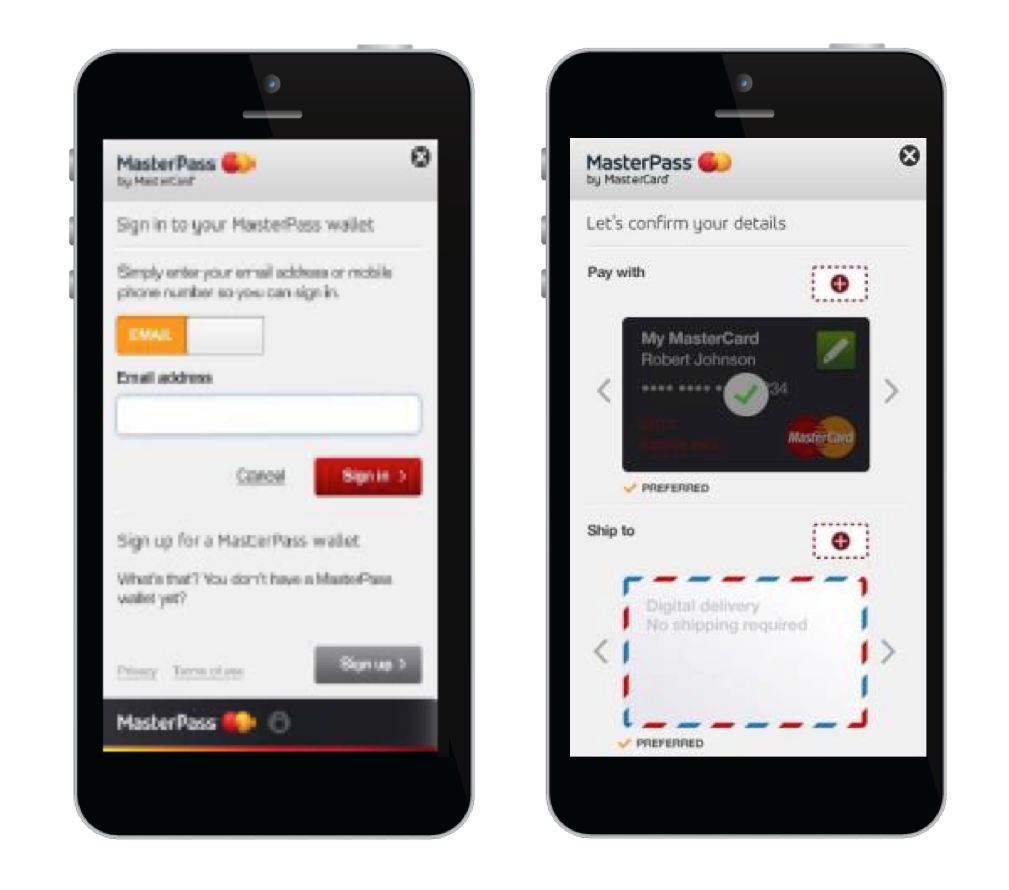

Standard Mobile Display (.mobi)

Within the .mobi experience, the header and footer are approximately 70 pixels high except for the iPhone 5/5S, which has a header and footer which are approximately 30 pixels high. The interior content area for mobile devices is content dependent. The initial view of content is based on the overall screen sizes. Content that does not fit within the initial view of content can be accessed by scrolling. There will not be a landscape view for mobile; only portrait will be supported.

Standard Full Screen Display

Under certain conditions, such as when the merchant has not yet made coding changes to invoke the Lightbox display, or if the URL requesting the Lightbox display is different from the merchant specified origin URL, then MasterPass will render the wallet experience in full screen. This full screen wallet experience supports all functionality and design as that of the Lightbox display.

Browser Support

Desktop browsers:

* Safari - 7 and higher

* IE 8 and higher

* Firefox (current and previous 2 versions)

* Chrome (current and previous 2 versions)

Mobile browsers:

* Safari on iOS

* Android browser

* Opera mini

* Chrome

Android Applications:

Ideally would not be device specific but include:

* ICS, JB, and KK (4.0.3 to 4.4)

* The 4 dpi levels in the Android best practice guide (small, normal, larger, x-large)

Developer Registration and Setup

Developers invited to integrate MasterPass on behalf of a Partner wallet provider will manage their integration activities through the MasterCard Developer Zone.

MasterCard Developer Zone Account

MasterCard Developer Zone is the repository of all the technical resources necessary for MasterPass Partner-hosted wallet integration. From the Developer Zone, developers will be able to:

1. View MasterPass Partner-hosted wallet API documentation
2. Generate the API keys necessary to integrate with the MasterPass

To create a Developer Zone account, follow the URL in the developer invitation email or visit MasterCard Developer Zone (developer.mastercard.com) and click Create Account. After completing the account creation form, be sure to activate your account by following the instructions in the confirmation e-mail.

Generate Sandbox and Production API Keys

After creating your account, you will need to generate two sets of API keys (one each for the sandbox and production environments).

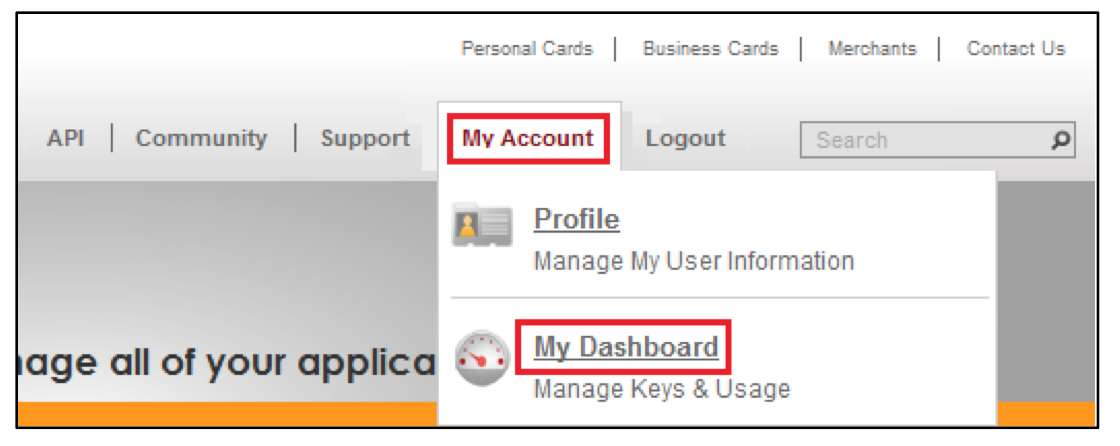

To create a Sandbox key, click My Account, then My Dashboard. On the My Dashboard page, click Get an API Key button, complete the form and click Submit

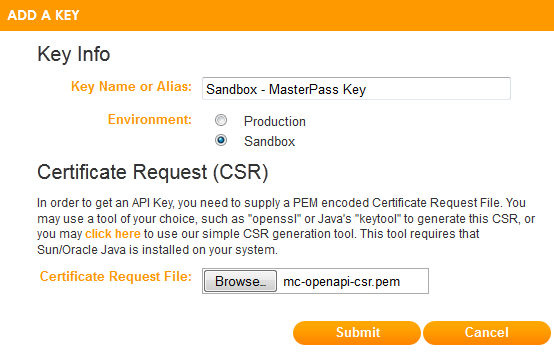

On the My Dashboard page, click My Keys button and then click on Add a Key button.

In order to get an API Key,you need to supply a PEM encoded Certificate Request File. You may use a tool of your choice, such as "openssl" or Java's "keytool" to generate this CSR, or you may use the CSR generation tool on the developer zone portal.

Complete the form, select Sandbox for Environment, and click Submit.

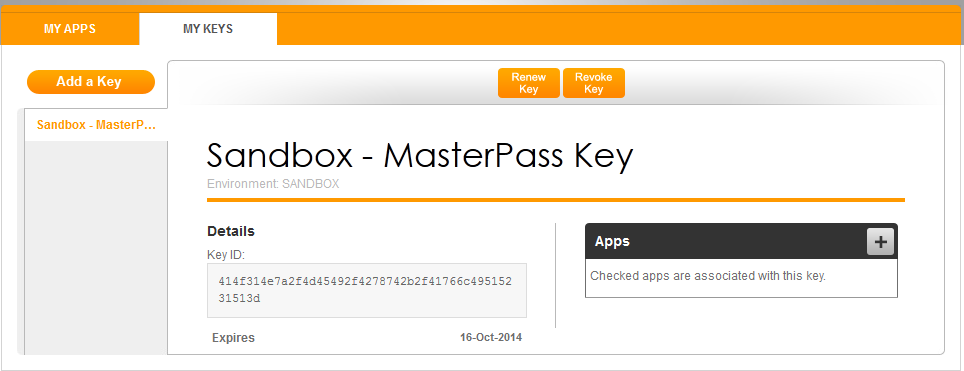

You will have Sandbox Key ID at this point as seen below.

You will now need to create an "App" so that a consumer key can be generated. You can do this multiple ways but one way is to simply click on the "My Apps" tab and click "Add an App".

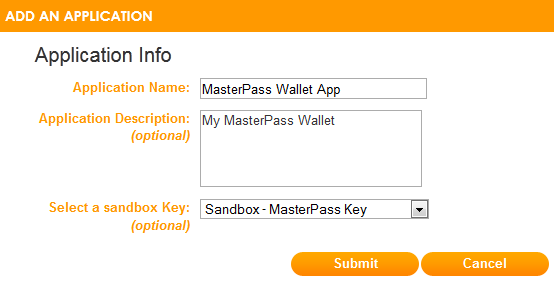

Fill out the information as below and select the Sandbox Key you just created, click Submit.

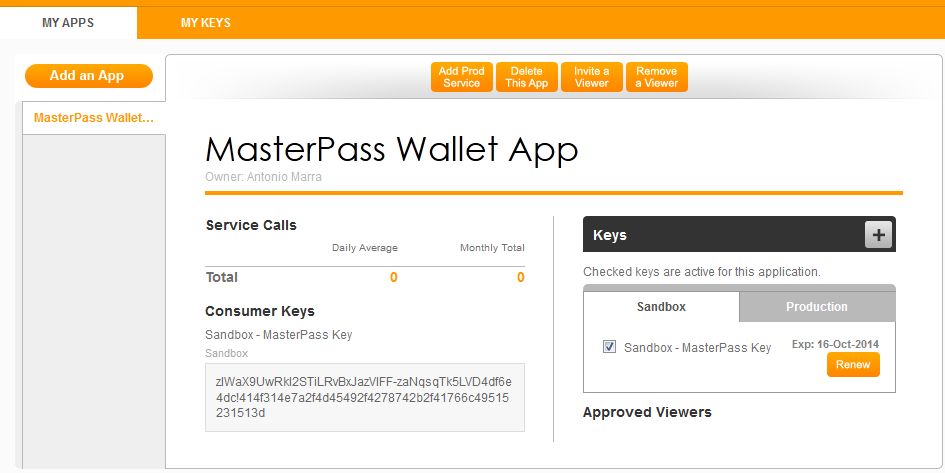

You now will have a consumer key generated to use when accessing the MasterPass API's. (See below image).

To create a Production API key, return to My Dashboard and click on My Keys. Then click on Add a Key and make sure you select Production environment. Complete the form and click Submit. Please note, Production keys require approval and will only be approved once the wallet has been created and certified in the Sandbox environment. It is therefore suggested to wait until you are close to moving to production before requesting.

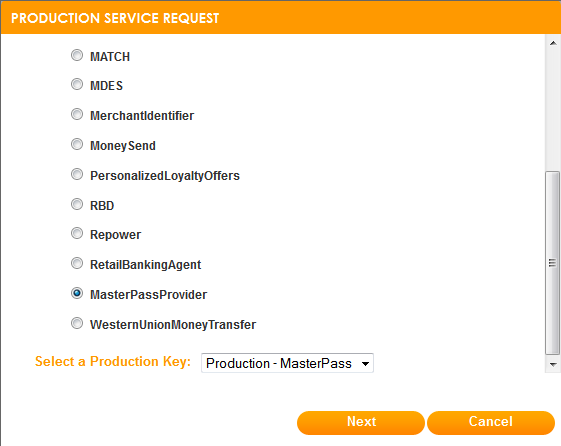

After you create the Production Key as noted, you will need to grant it access to the Production Wallet API's. To do this, navigate to the Wallet Application under "My Apps" that you created in the earlier steps. (You should still see your sandbox consumer key there). Once in your App, click on "Add Prod Service". "Selects "MasterPass Provider" as the Service, select the Production Key you generated in the dropdown and then click Next.

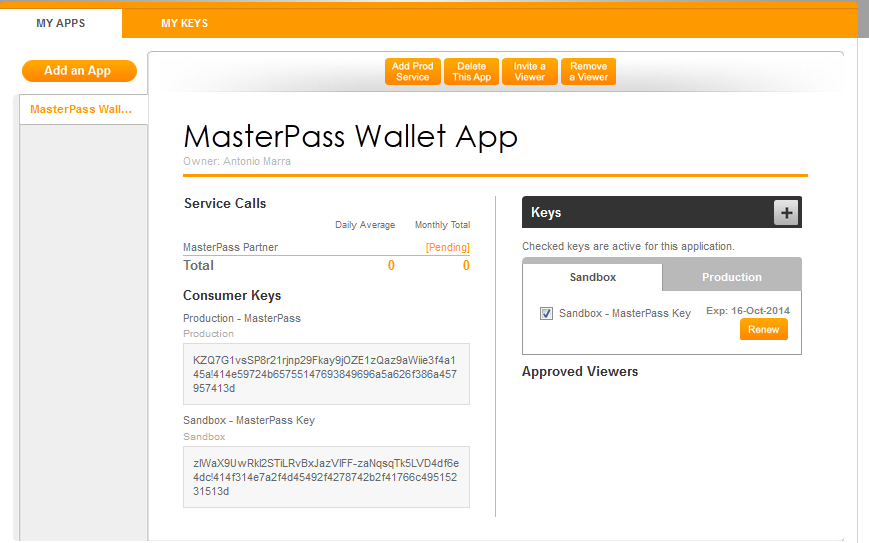

You will get a confirmation message and then the image below which shows your Production Consumer key as pending. Once certified, keys can be approved by MasterCard and you then will receive an email, the pending message will disappear and the consumer key will have access to the production API's.

MasterCard OpenAPI

MasterPass APIs are hosted on the MasterCard OpenAPI platform. The MasterCard OpenAPI has authentication requirements designed to maintain the security of the MasterCard network and to ensure the safety of your customers' financial transactions.It depends on the OAuth 1.0a specification - an open standard that provides a process for users to authorize third-party access to their server resources without sharing their credentials.

As part of our OAuth implementation, MasterCard OpenAPI uses an RSA private key, and a corresponding public key delivered to MasterCard via a Certificate Signing Request. For requests that have a request body, we also utilize the Google body-hash extension for OAuth (see oauth_body_hash below).

You can create or access this certificate signing request by accessing My Dashboard (within Developer Zone). You register once per service you plan to utilize. You will be asked to generate a private-public key pair and a certificate signing request (CSR). You should receive a consumer key and signed certificate via email after registering. Please note that the signed certificate will not be used by you in generating the authorization, as covered below. Only the private key you generate and the consumer key we provide is used in generating the authorization elements.

You must keep the private key you generated to sign your requests. We recommend keeping your private key in a password-protected or hardware key store.

OAuth Header

All HTTP Requests to OpenAPI need to add an Authorization Header. As you work through generating your Authorization header following the steps below, you may refer to this document to validate your implementation.

Following the OAuth 1.0a specification, the Authorization Header looks like this (No New Lines or Carriage Returns): The "OAuth<space>" is required:

Let's break this down item by item:

• oauth_consumer_key - The sandbox or production API key you generated in previous steps.
• oauth_nonce - A random string generated per request in order to protect against replay attacks.
• oauth_timestamp - An integer value which represents the number of seconds since 1970.
• oauth_version - Specification version of OAuth header; currently "1.0" is the only supported value
• oauth_body_hash - This is a Google extension to OAuth, which contains a SHA-1 hash of the actual request body that is Base64 encoded. It should only be present on POST requests that contain a body. It guarantees that the body has not been tampered with during transport.
• oauth_signature_method - The method you will have used create the oauth_signature value. MasterCard OpenAPI only supports "RSA-SHA1". Any other signature method will fail.
• oauth_signature - This is a signature that the server can use to confirm the OAuth header hasn't been modified during transport.

OAuth Signature

After all parts of the OAuth header have been generated, other than the oauth_signature parameter itself (but including the oauth_signature_format), you must generate the signature. Generating the signature is a two-step process:

1. Generate a "signature base string" following the format defined in the OAuth 1.0a specification.
2. Sign the "signature base string" using your RSA private key.

Generating the Signature Base String

The "signature base string" is the string that you will sign to prove your identity to MasterCard. The format is defined by the OAuth 1.0a specification, section 9.

Building the signature base string involves placing all the items that make up a request into a specific order. This order is extremely important, and is mandated explicitly by the specification. Since the MasterCard API gateway follows this order exactly, and then generates a signature, if you do not follow the order perfectly, your signature will not validate. Getting it correct can be difficult and tedious, and we encourage you to use an OAuth library if possible, as it will completely automate this time-consuming process.

The signature base string is made up of three major parts, delimited by an ampersand ("&"). The three sections are:

1. The HTTP Method. For our API: "GET" or "POST"
2. The URL. This is the URL up to (and not including) the "?" when there is a query string.
3. The parameters (both OAuth and query string). See below for details.

As mentioned, each of these sections should have an ampersand ("&") delimiter between them. The OAuth parameters and query string parameters should be URI encoded, so their ampersands become %26. In other words, the signature base string should have at most two ampersands ("&") in total.

Signature Base String in Detail

Here's more detail on each of the three sections of the signature base string.

1. First, the HTTP method is added. For the MasterCard API, this will be GET or POST, as appropriate. Please refer to the documentation for the API you are using, as this will tell you whether to use a GET or a POST for that API under the subheading "HTTP Methods".
2. The URL prior to the query string (and not including the question mark) is added. The port should be excluded (for instance, exclude :443 for https requests). The URL should be in all lowercase, regardless of the case of the request.
3. The oauth and query string parameters are sorted by name, using lexicographical byte value ordering. If two or more parameters share the same name, they are sorted by their value. For example:

a=1,c=hi%20there,f=25,f=50,f=a,z=p,z=t

This sorting should happen after URI encoding.

Signing the Signature Base String

At this point you should have the proper signature base string.

Your client code now needs to generate an RSA signature for this string using the private key you created when building the Certificate Signing Request when you registered your application on My Dashboard. Most development languages offer built in methods for generating an RSA signature.

Encoding the RSA Signature

You should now have an RSA signature that corresponds to your signature base string.

1. This signature needs to be Base64 encoded.
2. This Base64 encoded signature then needs to be URL encoded using UTF-8.
3. This Base64 URL encoded signature from the previous step needs to have the following replacements made:

• replace "+" with "%20"
• replace "*" with "%2A"
• replace "%7E" with "~"

Adding Your Encoded Signature to the Authorization Header

As the final step, you take this resulting encoded signature and add it to your Authorization header as the "oauth_signature". After this OAuth string is generated, it should be set as the "Authorization" header for the HTTP request to the service.

Refer to this document to validate your implementation, as well as the appendix to view sample requests and responses.

New v6 URLs

Note: These URLs are necessary for all v6 wallets to be appropriately setup although they do not require to be distinct depending on the partner's setup.

ExtensionPoint Elements

Starting with API v6, all schema container elements contain a new optional element named "ExtensionPoint".  These elements are intended to provide expandability of the API without requiring a new major version.  These elements are defined to contain a sequence of "xs:any", meaning that any XML content can be contained within the element.  In order to ensure future expandability, all integrators must not perform any validation of elements received inside an ExtensionPoint element, beyond any that may be defined by MasterPass in the future with a separate schema.  Any such extensions will be optional.  Further, only authorized schemas will be allowed inside ExtensionPoint elements, and any unknown elements will be dropped by MasterPass.

  <ExtensionPoint>
      <s:SampleExtension xmlns:s="https://www.masterpass.com/location/of/example/ns">
        <s:SampleField>Sample Value</s:SampleField>
      </s:SampleExtension>
      <f:AnotherExampleExtension xmlns:f="https://www.masterpass.com/location/of/example2/ns>
          <f:SampleContainer>
             <f:AnotherSampleField>Sample Value</f:AnotherSampleField>
          </f:SampleContainer>
      </f:AnotherExampleExtension>
  </ExtensionPoint>

Checkout

The checkout process starts when a shopper clicks the MasterPass checkout button on a merchant site. This begins a set of exchanges that will bring the shopper through MasterPass, to the Partner site and back out to the merchant again.The checkout has a 15 minute timeout, so if the merchant does not come back to pick up the checkout data within that time limit, the checkout will need to be restarted.

Checkout Initialization

Shoppers will be directed to the Partner site via a checkout initialization URL. Partners must inform MasterCard of this URL as part of the integration process in order for this flow to be configured. MasterPass will execute this URL when the user selects the Partner-hosted wallet. MasterPass will append the following parameters to the request based on which version of MasterPass the merchant has implemented:

MasterPass 3.0

• flow
  This will define the process that merchant is requesting. It is important if the Partner uses the same URL for Pairing, Checkout, Account Maintenance, etc.
• locale
  This defines the desired locale to be used when displaying pages
• targetOrigin
  This is the origin URL of the request.
• checkout_identifier
  This is a unique value to identify the merchant.
• allowedLoyaltyPrograms
  This optional parameter indicates which loyalty programs the merchant will in the Checkout Authorization call.The partner application should only allow users to select a loyalty program for this checkout if the merchant accepts it.This parameter is only valid for merchants using v4 or later of the Merchant Checkout API and then only sent if the Merchant accepts the loyalty program for the transaction.
• pairingRequestToken
  This is OAuth Request Token acquired by the merchant for this pairing attempt. This is the primary identifier for the pairing and it will expire in 15 minutes.This is a required parameter if pairing.
• requestedDataTypes
  This field indicates the data fields a connected merchant would like access to. It is a required parameter if pairing is requested.The following are valid data types: ADDRESS, CARD, PROFILE, REWARD_PROGRAM.
• requestPairing
  This field indicates that the merchant would like to connect to a user's wallet.
• requestExpressCheckout
  This field indicates that the merchant would like enable express checkout with a consumer.
• cardId
  This field indicates the Id of the card data to return during a connected checkout.The merchant receives this value when they request precheckout data.
• shippingId
  This field indicates the Id of the shipping data to return during a connected checkout.The merchant receives this value when they request precheckout data.
• loyaltyId
  This field indicates the Id of the loyalty program to return during a connected checkout.The merchant receives this value when they request precheckout data.
• precheckoutTransactionId
  This field uniquely identifies the during a connected checkout.The merchant receives this value when they request precheckout data.
• walletId
  This field uniquely identifies the partner hosted wallet.
• silentPairing
  This field indicates that a Silent Pairing enabled merchant is requesting pairing.This parameter will only be used by MasterCard for MasterCard innovative products at this stage.
• merchantSuppressSignup
  This field indicates that a merchant is requesting a checkout experience without showing any sign up options.It may be used by merchants that have a shorter checkout timeout and want an expedited experience.
• oauth_token
  This is OAuth Request Token acquired by the merchant for this checkout transaction.This is the primary identifier for the checkout and it will expire in 15 minutes.This is a required parameter.
• checkout_version
  This is the checkout version the merchant supports.This is a required parameter and is an extremely important parameter in the Checkout Authorization Service.The value provided here will be used to generate the Checkout Authorization endpoint URL, and as noted below, will influence the data sent back to MasterPass. Example 6, 5, 4, etc.

• The partner may need to adjust the data sent to the Checkout Authorization service based on the value of this parameter.See additional notes below.

• acceptable_cards
  This parameter indicates card types accepted by the merchant. It is a comma separated list of card types. The following are valid card types: master, visa, amex, discover, maestro, diners. Card types in the list are case insensitive. For example VISA, MASTER and visa, MASTER are all valid. This is an optional parameter; all cards are accepted if not passed in.
•      Partner must only display MasterPass-supported cards for the consumer to choose from during a MasterPass transaction.
• suppress_shipping_address
  This flag indicates whether shipping address should be suppressed for the checkout. This is an optional parameter, defaulted to false if not passed. Valid values are: true, false. The value is case insensitive.  This parameter is only valid for merchants using v2 or later of the Merchant Checkout API.
• merchant_return_url
  This is the merchant URL to return to when the consumer clicks the "Return to Merchant" link in the header. Partner must display the "Return to Merchant" link in the header. This is a required parameter.
• merchant_name
  This parameter provides the merchant name. This is a required parameter.
• merchant_logo_url
  This parameter provides the image URL of the merchant's logo. This is an optional parameter. Partner must display the merchant logo as part of the "Return to Merchant" link in the header of the checkout flow if this parameter is provided; otherwise, merchant name must be displayed.
• accept_reward_program
  This optional parameter indicates if the merchant will accept a reward or loyalty program in the Checkout Authorization call The partner application should only allow users to select a loyalty program for this checkout if the value of this parameter is 'true'.The default value is 'false'.This parameter is only valid for merchants using v4 or later of the Merchant Checkout API and then only sent if the Merchant accepts the loyalty program for the transaction.
• shipping_location_profile
  This parameter identifies the merchant's shipping location profile, which identifies the locations that this checkout can be shipped to.  This optional parameter will only be provided if the merchant specifies a non-default shipping location profile.  It must be passed in to the Shipping Address Verification Service call.  This parameter is only valid for merchants using v4 or later of the Merchant Checkout API and then only sent if the Merchant requires specific shipping restrictions for the transaction.
•  auth_options
  This parameter contains the card brands for which 3DS should be performed for this merchant.  It is a comma-separated list of card types. The following are valid card types: master, maestro, visa, amex, discover, diners. If this parameter is NO_3DS, no 3DS should be performed.  This parameter is only valid for merchants using v3 or later of the Merchant Checkout API. Partners would be allowed to disable 3DS from occurring as part of the services of the lightbox, to do it, they will need to get explicit approval from card issuers and pass agreed upon cAVV and ECIflag  values that the card issuer can recognize to provide liability shift.
•  cardinal_merchant_id
  This is the ID by which Cardinal will recognize the merchant. If 3DS authentication needs to be run, the Partner must pass this value in the <MerchantId> field on the Lookup call to Cardinal. This parameter is only valid for merchants using v3 or later of the Merchant Checkout API.
• amount
  This is the subtotal of the transaction. If 3DS authentication needs to be run, the Partner must pass this value in the <Amount> field on the Lookup call to Cardinal. This parameter is only valid for merchants using v3 or later of the Merchant Checkout API.
• currency
  This is the currency of the transaction in 3-digit numeric ISO format. If 3DS authentication needs to be run, the Partner must pass this value in the <CurrencyCode> field on the Lookup call to Cardinal. This parameter is only valid for merchants using v3 or later of the Merchant Checkout.
• order_number
  The "Order Number" value is the timestamp (in milliseconds) at the time the Checkout Initialization URL is requested. If 3DS authentication needs to be run, the Partner must pass this value in the <OrderNumber> field on the Lookup call to Cardinal. This parameter is only valid for merchants using v3 or later of the Merchant Checkout API.
• merchantSuppressSignup
• This optional parameter indicates that no signup screens should be shown during the flow. A merchant might request this if they have a shorter timeout for this experience.

A partner must implement a checkout initialization page that takes the above request parameters and stores them for later usage, and then starts the checkout flow.

Checkout Authorization

After the consumer selects card and shipping information using a Partner-hosted wallet and clicks the "Review Your Order" button, the Partner must invoke the MasterCard Checkout Authorization Service, via OpenAPI, to authorize the checkout. See below for details on this service.

MasterCard Checkout Authorization Service

This is the service a Partner must use to authorize the merchant to access a consumer's checkout data. This is a REST service exposed on MasterCard OpenAPI infrastructure.  We are currently up to version 6 of this service (supported merchant versions are v1,v2, v3, v4, v5, and v6) and there have been minor adjustments with each version along the way that impact the functionality that is supported by Merchants.  The partner is required to use the Checkout Authorization Service schema version based on the version value provided by the merchant in the Checkout Initialization call parameter "checkout_version"(for V1-V5) and "version"(for V6). The currently supported V6 Checkout Authorization service schemas are identified below.

It is also expected that the service will continue to evolve as new capabilities are introduced. Partners must anticipate receiving a value of 'V7' in the future.  It is required for partners to support the latest version of the API within 6 months of launch. As soon as new specifications are available, the partner will be contacted with the updates.

Note: as required by local law, some of those fields are enabled solely where there is a local law requirement (Date of Birth, National ID, Gender). Please speak to your local MasterCard Representative or ask on the Developer Zone forum if those fields would work in your country.

Resource URL

V1-V5

api.mastercard.com/online/partner/<version>/checkout Note: Replace the <version> tag in this URL with the version supplied in the Checkout Initialization call parameter "checkout_version". Then also use the appropriate version schema below to provide the checkout data to MasterPass.

V6

api.mastercard.com/masterpass/partner/<version>/checkout Note: Replace the <version> tag in this URL with the version supplied in the Checkout Initialization call parameter "version". Then also use the appropriate version schema below to provide the checkout data to MasterPass.

Resource Method

POST

Data Format

XML

Request V6

Here is XML Schema for both the request and response:

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
    <xs:element name="AuthorizeCheckoutRequest" type="AuthorizeCheckoutRequest"/>
    <xs:element name="AuthorizeCheckoutResponse" type="AuthorizeCheckoutResponse"/>
    <xs:element name="Errors" type="Errors"/>
    <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
  <xs:complexType name="ExtensionPoint">
    <xs:sequence>
    <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any"/>
    </xs:sequence>
  <xs:anyAttribute/>
  </xs:complexType>

  <xs:complexType name="Address">
    <xs:sequence>
      <xs:element name="City" type="NonEmptyString"/>
      <xs:element name="Country" type="Country"/>
      <xs:element name="CountrySubdivision" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="Line1" type="NonEmptyString"/>
      <xs:element name="Line2" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="Line3" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="PostalCode" type="NonEmptyString" minOccurs="0"/>
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="AuthenticationOptions">
    <xs:sequence>
      <xs:element name="AuthenticateMethod" type="xs:string" minOccurs="0"/>
      <xs:element name="CardEnrollmentMethod" type="xs:string" minOccurs="0"/>
      <xs:element name="CAvv" type="xs:string" minOccurs="0"/>
      <xs:element name="EciFlag" type="xs:string" minOccurs="0"/>
      <xs:element name="MasterCardAssignedID" type="xs:string" minOccurs="0"/>
      <xs:element name="PaResStatus" type="xs:string" minOccurs="0"/>
      <xs:element name="SCEnrollmentStatus" type="xs:string" minOccurs="0"/>
      <xs:element name="SignatureVerification" type="xs:string" minOccurs="0"/>
      <xs:element name="Xid" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="AuthorizeCheckoutRequest">
    <xs:sequence>
    <xs:element name="OAuthToken" type="xs:string"/>
    <xs:element name="AuthorizedCheckout" type="AuthorizedCheckout"/>
    <xs:element name="Errors" type="Errors" minOccurs="0"/>
    <xs:element name="PreCheckoutTransactionId" type="xs:string" minOccurs="0"/>
    <xs:element name="MerchantParameterId" type="xs:string" minOccurs="0"/>
    <xs:element name="DeviceType" minOccurs="0">
  <xs:simpleType>
  <xs:restriction base="xs:string">
  <xs:enumeration value="DESKTOP"/>
  <xs:enumeration value="MOBILE"/>
  </xs:restriction>
  </xs:simpleType>
  </xs:element>

  <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
  </xs:sequence>
  </xs:complexType>
  <xs:complexType name="AuthorizedCheckout">
    <xs:sequence>
      <xs:element name="Card" type="Card"/>
      <xs:element name="Contact" type="Contact"/>
      <xs:element name="ShippingAddress" type="ShippingAddress" minOccurs="0"/>
      <xs:element name="AuthenticationOptions" type="AuthenticationOptions" minOccurs="0"/>
      <xs:element name="RewardProgram" type="RewardProgram" minOccurs="0"/>
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="Card">
    <xs:sequence>
      <xs:element name="BrandId" type="NonEmptyString"/>
      <xs:element name="BrandName" type="NonEmptyString"/>
      <xs:element name="AccountNumber" type="NonEmptyString"/>
      <xs:element name="BillingAddress" type="Address"/>
      <xs:element name="CardHolderName" type="NonEmptyString"/>
      <xs:element name="ExpiryMonth" type="Month" minOccurs="0"/>
      <xs:element name="ExpiryYear" type="Year" minOccurs="0"/>
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="Contact">
    <xs:sequence>
    <xs:element name="FirstName" type="NonEmptyString"/>
    <xs:element name="MiddleName" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
        <xs:minLength value="1"/>
        <xs:maxLength value="150"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="LastName" type="NonEmptyString"/>
    <xs:element name="Gender" type="Gender" minOccurs="0"/>
    <xs:element name="DateOfBirth" type="DateOfBirth" minOccurs="0"/>
    <xs:element name="NationalID" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
        <xs:minLength value="1"/>
        <xs:maxLength value="150"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Country" type="Country"/>
    <xs:element name="EmailAddress" type="EmailAddress"/>
    <xs:element name="PhoneNumber" type="xs:string"/>
    <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="DateOfBirth">
    <xs:sequence>
    <xs:element name="Year">
      <xs:simpleType>
        <xs:restriction base="xs:int">
        <xs:minInclusive value="1900"/>
        <xs:pattern value="\d{4}"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="Month" type="Month"/>
    <xs:element name="Day">
      <xs:simpleType>
        <xs:restriction base="xs:int">
        <xs:minInclusive value="1"/>
        <xs:maxInclusive value="31"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
    <xs:complexType name="ShippingAddress">
      <xs:complexContent>
        <xs:extension base="Address">
        <xs:sequence>
        <xs:element name="RecipientName" type="NonEmptyString"/>
        <xs:element name="RecipientPhoneNumber" type="xs:string"/>
        </xs:sequence>
        </xs:extension>
      </xs:complexContent>
    </xs:complexType>
  <xs:complexType name="RewardProgram">
    <xs:sequence>
      <xs:element name="RewardNumber" type="xs:string"/>
      <xs:element name="RewardId" type="xs:string"/>
      <xs:element name="RewardName" type="xs:string" minOccurs="0"/>
      <xs:element name="ExpiryMonth" type="Month" minOccurs="0"/>
      <xs:element name="ExpiryYear" type="Year" minOccurs="0"/>
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
    <xs:simpleType name="NonEmptyString">
      <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:whiteSpace value="collapse"/>
      </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="Country">
      <xs:restriction base="xs:string">
      <xs:pattern value="[A-Z]{2}"/>
      </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="Language">
      <xs:restriction base="xs:string">
      <xs:pattern value="[a-z]{2}"/>
      </xs:restriction>
    </xs:simpleType>
    <xs:simpleType name="Month">
    <xs:restriction base="xs:int">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="12"/>
    </xs:restriction>
    </xs:simpleType>
  <xs:simpleType name="Year">
    <xs:restriction base="xs:int">
    <xs:minInclusive value="2013"/>
    <xs:pattern value="\d{4}"/>
  </xs:restriction>
  </xs:simpleType>
  <xs:simpleType name="EmailAddress">
    <xs:restriction base="xs:string">
    <xs:pattern value="[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*@[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*"/>
    </xs:restriction>
  </xs:simpleType>
    <xs:simpleType name="Gender">
    <xs:restriction base="xs:token">
    <xs:enumeration value="M"/>
    <xs:enumeration value="F"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:complexType name="AuthorizeCheckoutResponse">
  <xs:sequence>
  <xs:element name="MerchantCallbackURL" type="xs:string"/>
  <xs:element name="StepupPending" type="xs:boolean"/>
  <xs:element name="OAuthVerifier" type="xs:string" minOccurs="0"/>
  <xs:element name="PreCheckoutTransactionId" type="xs:string" minOccurs="0"/>
  <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
  </xs:sequence>
  </xs:complexType>
<xs:complexType name="Error">
  <xs:sequence>
  <xs:element name="Description" type="xs:string" minOccurs="0"/>
  <xs:element name="ReasonCode" type="xs:string"/>
  <xs:element name="Recoverable" type="xs:boolean"/>
  <xs:element name="Source" type="xs:string"/>
  <xs:element name="Details" type="Details" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
  <xs:complexType name="Errors">
  <xs:sequence>
   <xs:element name="Error" type="Error" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
  <xs:complexType name="Details">
    <xs:sequence>
     <xs:element name="Detail" type="Detail" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
<xs:complexType name="Detail">
  <xs:sequence>
    <xs:element name="Name" type="xs:string"/>
    <xs:element name="Value" type="xs:string"/>
  </xs:sequence>
</xs:complexType>
</xs:schema>

Request V5

Here is XML Schema for both the request and response:

 <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:element name="AuthorizeCheckoutResponse" type="AuthorizeCheckoutResponse"/>
  <xs:complexType name="AuthorizeCheckoutResponse">
    <xs:sequence>
    <xs:element name="MerchantCallbackURL" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
<xs:element name="AuthorizeCheckoutRequest" type="AuthorizeCheckoutRequest"/>
  <xs:complexType name="AuthorizeCheckoutRequest">
    <xs:sequence>
    <xs:element name="OAuthToken" type="xs:string"/>
    <xs:element name="AuthorizedCheckout" type="AuthorizedCheckout"/>
    </xs:sequence>
  </xs:complexType>
  <xs:complexType name="AuthorizedCheckout">
    <xs:sequence>
      <xs:element name="Card" type="Card"/>
      <xs:element name="Contact" type="Contact"/>
      <xs:element name="ShippingAddress" type="ShippingAddress"minOccurs="0"/>
      <xs:element name="AuthenticationOptions" type="AuthenticationOptions"minOccurs="0"/>
      <xs:element name="RewardProgram" type="RewardProgram"minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
<xs:complexType name="Card">
  <xs:sequence>
  <xs:element name="BrandId" type="xs:string"/>
  <xs:element name="BrandName" type="xs:string"/>
  <xs:element name="AccountNumber" type="xs:string"/>
  <xs:element name="BillingAddress" type="Address"/>
  <xs:element name="CardHolderName" type="xs:string"/>
  <xs:element name="ExpiryMonth" type="xs:string"minOccurs="0"/>
  <xs:element name="ExpiryYear" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
<xs:complexType name="Contact">
  <xs:sequence>
    <xs:element name="FirstName" type="xs:string"/>
    <xs:element name="MiddleName" type="xs:string"minOccurs="0"/>
    <xs:element name="LastName" type="xs:string"/>
    <xs:element name="Gender" type="Gender"minOccurs="0"/>
    <xs:element name="DateOfBirth" type="DateOfBirth"minOccurs="0"/>
    <xs:element name="NationalID" type="xs:string"minOccurs="0"/>
    <xs:element name="Country" type="xs:string"minOccurs="0"/>
    <xs:element name="EmailAddress" type="xs:string"/>
    <xs:element name="PhoneNumber" type="xs:string"/>
  </xs:sequence>
</xs:complexType>
<xs:complexType name="DateOfBirth">
  <xs:sequence>
    <xs:element name="Year" type="xs:long"/>
    <xs:element name="Month" type="xs:long"/>
    <xs:element name="Day" type="xs:long"/>
  </xs:sequence>
</xs:complexType>
  <xs:simpleType name="Gender">
    <xs:restriction base="xs:string">
      <xs:enumeration value="M"/>
      <xs:enumeration value="F"/>
    </xs:restriction>
  </xs:simpleType>
<xs:complexType name="ShippingAddress">
  <xs:complexContent>
  <xs:extension base="Address">
    <xs:sequence>
      <xs:element name="RecipientName" type="xs:string"/>
      <xs:element name="RecipientPhoneNumber" type="xs:string"/>
    </xs:sequence>
  </xs:extension>
  </xs:complexContent>
</xs:complexType>
<xs:complexType name="Address">
  <xs:sequence>
    <xs:element name="City" type="xs:string"/>
    <xs:element name="Country" type="xs:string"/>
    <xs:element name="CountrySubdivision" type="xs:string"minOccurs="0"/>
    <xs:element name="Line1" type="xs:string"/>
    <xs:element name="Line2" type="xs:string"minOccurs="0"/>
    <xs:element name="Line3" type="xs:string"minOccurs="0"/>
    <xs:element name="PostalCode" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
<xs:complexType name="AuthenticationOptions">
  <xs:sequence>
    <xs:element name="AuthenticateMethod" type="xs:string"minOccurs="0"/>
    <xs:element name="CardEnrollmentMethod" type="xs:string"minOccurs="0"/>
    <xs:element name="CAvv" type="xs:string"minOccurs="0"/>
    <xs:element name="EciFlag" type="xs:string"minOccurs="0"/>
    <xs:element name="MasterCardAssignedID" type="xs:string"minOccurs="0"/>
    <xs:element name="PaResStatus" type="xs:string"minOccurs="0"/>
    <xs:element name="SCEnrollmentStatus" type="xs:string"minOccurs="0"/>
    <xs:element name="SignatureVerification" type="xs:string"minOccurs="0"/>
    <xs:element name="Xid" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
<xs:complexType name="RewardProgram">
  <xs:sequence>
    <xs:element name="RewardNumber" type="xs:string"/>
    <xs:element name="RewardId" type="xs:string"/>
    <xs:element name="RewardName" type="xs:string"/>
    <xs:element name="ExpiryMonth" type="xs:string"minOccurs="0"/>
    <xs:element name="ExpiryYear" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
</xs:schema>

Request V4

Here is XML Schema for both the request and response:

<?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">

<xs:element name="AuthorizeCheckoutResponse" type="AuthorizeCheckoutResponse"/>
<xs:complexType name="AuthorizeCheckoutResponse">
  <xs:sequence>
  <xs:element name="MerchantCallbackURL" type="xs:string"/>
  </xs:sequence>
</xs:complexType>

<xs:element name="AuthorizeCheckoutRequest" type="AuthorizeCheckoutRequest"/>
<xs:complexType name="AuthorizeCheckoutRequest">
  <xs:sequence>
  <xs:element name="OAuthToken" type="xs:string"/>
  <xs:element name="AuthorizedCheckout" type="AuthorizedCheckout"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="AuthorizedCheckout">
  <xs:sequence>
  <xs:element name="Card" type="Card"/>
  <xs:element name="Contact" type="Contact"/>
  <xs:element name="ShippingAddress" type="ShippingAddress"minOccurs="0"/>
  <xs:element name="AuthenticationOptions" type="AuthenticationOptions"minOccurs="0"/>
  <xs:element name="RewardProgram" type="RewardProgram"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="Card">
  <xs:sequence>
  <xs:element name="BrandId" type="xs:string"/>
  <xs:element name="BrandName" type="xs:string"/>
  <xs:element name="AccountNumber" type="xs:string"/>
  <xs:element name="BillingAddress" type="Address"/>
  <xs:element name="CardHolderName" type="xs:string"/>
  <xs:element name="ExpiryMonth" type="xs:string"minOccurs="0"/>
  <xs:element name="ExpiryYear" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="Contact">
  <xs:sequence>
  <xs:element name="EmailAddress" type="xs:string"/>
  <xs:element name="FirstName" type="xs:string"/>
  <xs:element name="LastName" type="xs:string"/>
  <xs:element name="MiddleInitial" type="xs:string"minOccurs="0"/>
  <xs:element name="PhoneNumber" type="xs:string"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="ShippingAddress">
  <xs:complexContent>
  <xs:extension base="Address">
    <xs:sequence>
    <xs:element name="RecipientName" type="xs:string"/>
    <xs:element name="RecipientPhoneNumber" type="xs:string"/>
    </xs:sequence>
  </xs:extension>
  </xs:complexContent>
</xs:complexType>

<xs:complexType name="Address">
  <xs:sequence>
    <xs:element name="City" type="xs:string"/>
    <xs:element name="Country" type="xs:string"/>
    <xs:element name="CountrySubdivision" type="xs:string"minOccurs="0"/>
    <xs:element name="Line1" type="xs:string"/>
    <xs:element name="Line2" type="xs:string"minOccurs="0"/>
    <xs:element name="Line3" type="xs:string"minOccurs="0"/>
    <xs:element name="PostalCode" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="AuthenticationOptions">
  <xs:sequence>
    <xs:element name="AuthenticateMethod" type="xs:string"minOccurs="0"/>
    <xs:element name="CardEnrollmentMethod" type="xs:string"minOccurs="0"/>
    <xs:element name="CAvv" type="xs:string"minOccurs="0"/>
    <xs:element name="EciFlag" type="xs:string"minOccurs="0"/>
    <xs:element name="MasterCardAssignedID" type="xs:string"minOccurs="0"/>
    <xs:element name="PaResStatus" type="xs:string"minOccurs="0"/>
    <xs:element name="SCEnrollmentStatus" type="xs:string"minOccurs="0"/>
    <xs:element name="SignatureVerification" type="xs:string"minOccurs="0"/>
    <xs:element name="Xid" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="RewardProgram">
  <xs:sequence>
    <xs:element name="RewardNumber" type="xs:string"/>
    <xs:element name="RewardId" type="xs:string"/>
    <xs:element name="RewardName" type="xs:string"/>
    <xs:element name="ExpiryMonth" type="xs:string"minOccurs="0"/>
    <xs:element name="ExpiryYear" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

</xs:schema>

Request V3

Here is XML Schema for both the request and response:


<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">

<xs:element name="AuthorizeCheckoutResponse" type="AuthorizeCheckoutResponse"/>
  <xs:complexType name="AuthorizeCheckoutResponse">
    <xs:sequence>
    <xs:element name="MerchantCallbackURL" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
  <xs:element name="AuthorizeCheckoutRequest" type="AuthorizeCheckoutRequest"/>
  <xs:complexType name="AuthorizeCheckoutRequest">
    <xs:sequence>
      <xs:element name="OAuthToken" type="xs:string"/>
      <xs:element name="AuthorizedCheckout" type="AuthorizedCheckout"/>
    </xs:sequence>
</xs:complexType>

<xs:complexType name="AuthorizedCheckout">
  <xs:sequence>
    <xs:element name="Card" type="Card"/>
    <xs:element name="Contact" type="Contact"/>
    <xs:element name="ShippingAddress" type="ShippingAddress"minOccurs="0"/>
    <xs:element name="AuthenticationOptions" type="AuthenticationOptions"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="Card">
  <xs:sequence>
    <xs:element name="BrandId" type="xs:string"/>
    <xs:element name="BrandName" type="xs:string"/>
    <xs:element name="AccountNumber" type="xs:string"/>
    <xs:element name="BillingAddress" type="Address"/>
    <xs:element name="CardHolderName" type="xs:string"/>
    <xs:element name="ExpiryMonth" type="xs:string"minOccurs="0"/>
    <xs:element name="ExpiryYear" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="Contact">
  <xs:sequence>
    <xs:element name="EmailAddress" type="xs:string"/>
    <xs:element name="FirstName" type="xs:string"/>
    <xs:element name="LastName" type="xs:string"/>
    <xs:element name="MiddleInitial" type="xs:string"minOccurs="0"/>
    <xs:element name="PhoneNumber" type="xs:string"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="ShippingAddress">
  <xs:complexContent>
    <xs:extension base="Address">
      <xs:sequence>
        <xs:element name="RecipientName" type="xs:string"/>
        <xs:element name="RecipientPhoneNumber" type="xs:string"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

<xs:complexType name="Address">
  <xs:sequence>
    <xs:element name="City" type="xs:string"/>
    <xs:element name="Country" type="xs:string"/>
    <xs:element name="CountrySubdivision" type="xs:string"minOccurs="0"/>
    <xs:element name="Line1" type="xs:string"/>
    <xs:element name="Line2" type="xs:string"minOccurs="0"/>
    <xs:element name="Line3" type="xs:string"minOccurs="0"/>
    <xs:element name="PostalCode" type="xs:string"minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

<xs:complexType name="AuthenticationOptions">
  <xs:sequence>
    <xs:element name="AuthenticateMethod" type="xs:string"minOccurs="0"/>
    <xs:element name="CardEnrollmentMethod" type="xs:string"minOccurs="0"/>
    <xs:element name="CAvv" type="xs:string"minOccurs="0"/>
    <xs:element name="EciFlag" type="xs:string"minOccurs="0"/>
    <xs:element name="MasterCardAssignedID" type="xs:string"minOccurs="0"/>
    <xs:element name="PaResStatus" type="xs:string"minOccurs="0"/>
    <xs:element name="SCEnrollmentStatus" type="xs:string"minOccurs="0"/>
    <xs:element name="SignatureVerification" type="xs:string"minOccurs="0"/>
    <xs:element name="Xid" type="xs:string"minOccurs="0"/>
    </xs:sequence>
</xs:complexType>
</xs:schema>

Request V1 & V2

Here is XML Schema for both the request and response:

  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">

  <xs:element name="AuthorizeCheckoutResponse" type="AuthorizeCheckoutResponse"/>
  <xs:complexType name="AuthorizeCheckoutResponse">
    <xs:sequence>
    <xs:element name="MerchantCallbackURL" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>

  <xs:element name="AuthorizeCheckoutRequest" type="AuthorizeCheckoutRequest"/>
  <xs:complexType name="AuthorizeCheckoutRequest">
    <xs:sequence>
    <xs:element name="OAuthToken" type="xs:string"/>
    <xs:element name="AuthorizedCheckout" type="AuthorizedCheckout"/>
    </xs:sequence>
  </xs:complexType>

  <xs:complexType name="AuthorizedCheckout">
    <xs:sequence>
    <xs:element name="Card" type="Card"/>
    <xs:element name="Contact" type="Contact"/>
    <xs:element name="ShippingAddress" type="ShippingAddress"minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>

  <xs:complexType name="Card">
    <xs:sequence>
      <xs:element name="AccountNumber" type="xs:string"/>
      <xs:element name="BillingAddress" type="Address"/>
      <xs:element name="CardHolderName" type="xs:string"/>
      <xs:element name="ExpiryMonth" type="xs:string"minOccurs="0"/>
      <xs:element name="ExpiryYear" type="xs:string"minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>

  <xs:complexType name="Contact">
    <xs:sequence>
      <xs:element name="EmailAddress" type="xs:string"/>
      <xs:element name="FirstName" type="xs:string"/>
      <xs:element name="LastName" type="xs:string"/>
      <xs:element name="MiddleInitial" type="xs:string"minOccurs="0"/>
      <xs:element name="PhoneNumber" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>

  <xs:complexType name="ShippingAddress">
    <xs:complexContent>
      <xs:extension base="Address">
        <xs:sequence>
          <xs:element name="RecipientName" type="xs:string"/>
          <xs:element name="RecipientPhoneNumber" type="xs:string"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>

  <xs:complexType name="Address">
    <xs:sequence>
      <xs:element name="City" type="xs:string"/>
      <xs:element name="Country" type="xs:string"/>
      <xs:element name="CountrySubdivision" type="xs:string"minOccurs="0"/>
      <xs:element name="Line1" type="xs:string"/>
      <xs:element name="Line2" type="xs:string"minOccurs="0"/>
      <xs:element name="Line3" type="xs:string"minOccurs="0"/>
      <xs:element name="PostalCode" type="xs:string"minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>

  </xs:schema>

Element Overview Matrix:

Element Descriptions:

AuthorizeCheckoutResponse.MerchantCallbackURL

Description: This is the merchant callback URL that is returned from this service. This URL embeds all the information needed by the merchant to proceed with the checkout as request parameters. The partner must redirect the browser to this URL, after it is returned.

The following steps should be taken to ensure all parameters within the callback URL retain proper encoding:

1. HTML decodes the entire MerchantCallbackURL.
2. URL Decode the entire MerchantCallbackURL.
3. URL encodes the oauth_token, oauth_verifier, and checkout_resource_url parameter values.
4. Send the URL to the user as a redirect to the browser.

Steps 2 and 3 look redundant since the result of step 3 looks just like step 1, but these steps are needed in case the merchant adds another URL to their callback URL as a parameter.

Example

Original MerchantCallbackURL:

https://www.examplemerchant.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&amp;oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&amp;checkout_resource_url=https%3A%2F%2Fapi.mastercard.com%2Fonline%2Fv4%2Fcheckout%2F3020426%3Fwallet%3Dphw

HTML Decoded:

https://www.tasteaway.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&checkout_resource_url=https%3A%2F%2Fapi.mastercard.com%2Fonline%2Fv4%2Fcheckout%2F3020426%3Fwallet%3Dphw

URL Decoded:

https://www.tasteaway.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&checkout_resource_url=https://api.mastercard.com/online/v4/checkout/3020426?wallet=phw

URL Encoded oauth_token, oauth_verifier, and checkout_resource_url parameter values

https://www.tasteaway.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&checkout_resource_url=https%3A%2F%2Fapi.mastercard.com%2Fonline%2Fv4%2Fcheckout%2F3020426%3Fwallet%3Dphw

AuthorizeCheckoutResponse.OAuthVerifier

Description: Verifier that the merchant we use to retrieve their access token
Details: Optional, string

AuthorizeCheckoutResponse.StepupPending

Description: True if 3DS is required for a card being passed in the checkout data
Details: Required, Boolean

AuthorizeCheckoutResponse.PreCheckoutTransactionId

Description: Partner will append this as a parameter to their redirect URL in the case of a connected checkout.
Details: Optional, string

AuthorizeCheckoutRequest.OAuthToken

Description: This is oauth_token request parameter passed in during Checkout Initialization phase.
Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout

Description: This is checkout data including payment method, shipping address and consumer's contact information. These data elements will be stored in a temporary store once it is received by MasterPass and will be purged either when the checkout session expires (assuming it was not retrieved) or after data is accessed by the merchant.
Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BrandID

Description: The code that identifies the card as being a MasterCard, American Express, Visa, etc.  The value must be obtained from the Card Brands Service as the CardBrand.Id.

Details: Required for versions V3 and later

NOTE: The BrandID and BrandName parameters should not be included if checkout_version parameter to Checkout Initialization is set to v1 or v2

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BrandName

Description: The display name of the card brand, such as MasterCard, American Express, Visa, etc.  The value must be obtained from the Card Brands Service as the CardBrand.Name

Details: Required for versions V3 and later

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.AccountNumber

Description: This is the primary account number (PAN) printed on the card.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.CardHolderName

Description: This is the cardholder's name as printed on the card.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.ExpiryMonth

Description: Month in which the card will expire as printed on the card.

Details: Required, unless CardBrand.ExpDateRequired indicates otherwise

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.ExpiryYear

Description: Year in which the card will expire as printed on the card.

Details: Required, unless CardBrand.ExpDateRequired indicates otherwise

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress

Description: This is the billing address of the cardholder.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.Line1, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.Line1

Description: Primary street address of the cardholder/customer.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.Line2, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.Line2

Description: Optional second line of the street address of the cardholder/customer.

Details: Optional

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.Line3, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.Line3

Description: Optional third line of the street address of the cardholder/customer.

Details: Optional

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.City, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.City

Description: City associated with the address of the cardholder/customer.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.Country, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.Country

Description: Country element must be set to standard 2-letters country code as defined in ISO 3166-2 (http://en.wikipedia.org/wiki/ISO_3166-2), such as US, GB etc.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.CountrySubdivision, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.CountrySubdivision

Description: CountrySubdivision element must always be set to an ISO 3166-2 code for the following countries: Australia, Canada, Japan and the United States.  It is also recommended that ISO 3166-2 codes be used for subdivisions within other countries as well, although these will not be validated by the service and any free text value or a blank value is acceptable.  As a reference, US subdivision codes are defined here: http://en.wikipedia.org/wiki/ISO_3166-2:US; examples: US-VA, US-MO.

Details: Required for certain countries, recommended, but optional for others

AuthorizeCheckoutRequest.AuthorizedCheckout.Card.BillingAddress.PostalCode, AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.PostalCode

Description: Mail post office postal code (a.k.a. zip code) associated with the address of the cardholder/customer.  This is currently required for US, CA, GB, JP, DE, and AU although the list may change over time.

Details: Required conditionally by country

AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.RecipientName

Description: Name of the person that the package should be delivered to.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.ShippingAddress.RecipientPhoneNumber

Description: Phone contact for the person that the package should be delivered to.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.FirstName

Description: First name (given name) of the customer making the purchase.

Details: Required

NOTE: The order of elements within the Contact node has changed in v5 of the schema.  The elements must be alphabetical for v4 and earlier (EmailAddress, FirstName, LastName, MiddleInitial, PhoneNumber).  The elements are provided in a logical order starting in v5 (FirstName, MiddleName, LastName, Gender, DateOfBirth, NationalID, Country, EmailAddress, PhoneNumber).

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.MiddleName

Description: Middle name of the customer making the purchase.  It is required for certain countries and should not be specified for other countries.

Details: Required for certain countries

NOTE: This field was introduced in v5 and it may be required based on the consumer's country of residence.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.LastName

Description: Last name (family name or surname) of the customer making the purchase.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.MiddleInitial

Description: Middle initial of the customer making the purchase.

Details: Optional

NOTE: This field was removed in v5 (replaced with MiddleName).

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.Gender

Description: This is the consumer's gender, either 'F' for female or 'M' for male.  It is required for certain countries and should not be specified for other countries.

Details: Available in certain countries only, as required by local law

NOTE: This field was introduced in v5 and it may be required based on the consumer's country of residence.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.DateOfBirth.Year

Description: This is the year of the consumer's date of birth.  It is required for certain countries and should not be specified for other countries.

Details: Available in certain countries only, as required by local law

NOTE: This field was introduced in v5 and it may be required based on the consumer's country of residence.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.DateOfBirth.Month

Description: This is the month of the consumer's date of birth.  It is required for certain countries and should not be specified for other countries.

Details: Available in certain countries only, as required by local law

NOTE: This field was introduced in v5 and it may be required based on the consumer's country of residence.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.DateOfBirth.Day

Description: This is the day of the consumer's date of birth.  It is required for certain countries and should not be specified for other countries.

Details: Available in certain countries only, as required by local law

NOTE: This field was introduced in v5 and it may be required based on the consumer's country of residence.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.NationalID

Description: This is the consumer's national id.  It is required for certain countries and should not be specified for other countries.

Details: Available in certain countries only, as required by local law

NOTE: This field was introduced in v5 and it may be required based on the consumer's country of residence.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.Country

Description: This is the consumer's country of residence.  It is required whenever NationalID is provided.

Details: Available in certain countries only, as required by local law

NOTE: This field was introduced in v5.

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.EmailAddress

Description: Email address of the customer making the purchase.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.Contact.PhoneNumber

Description: Phone number of the customer making the purchase.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.AuthenticateMethod

Description: The method of authentication used during Checkout, if any.

Details: Optional

NOTE: The AuthenticationOptions elements can only be included if the checkout_version parameter in Checkout Initialization is set to 'v3' or later.

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.CardEnrollmentMethod

Description: Indicates the method by which the card was added to the Partner wallet.  Acceptable values are the following:

• Manual: The card was manually added to the Wallet by the user.
• 3DS Manual: The card was manually added by the user, and 3DS authentication was performed at time of add.
• Direct Provisioned: The card was directly provisioned into the Wallet by an Issuer partner.

Details: Optional

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.CAvv

Description: The <Cavv> value received on the Authenticate response from Cardinal.

Details: Optional (Required if received from Cardinal)

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.EciFlag

Description: The <EciFlag> value received on the Authenticate response from Cardinal.

Details: Optional (Required if received from Cardinal)

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.MasterCardAssignedID

Description: This field is part of the Maestro "MARP" program and does not need to be populated by the Partner.

Details: Optional

NOTE: The MasterCardAssignedID can only be included if the checkout_version parameter in Checkout Initialization is set to 'v4' or later.

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.PaResStatus

Description: The <PAResStatus> value received on the Authenticate response from Cardinal.

Details: Optional (Required if received from Cardinal)

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.SCEnrollmentStatus

Description: The <Enrolled> value received on the Lookup response from Cardinal.

Details: Optional (Required if received from Cardinal)

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.SignatureVerification

Description:  The <SignatureVerification> value received on the Authenticate response from Cardinal.

Details: Optional (Required if received from Cardinal)

AuthorizeCheckoutRequest.AuthorizedCheckout.AuthenticationOptions.Xid

Description: The <Xid> value received on the Authenticate response from Cardinal.

Details: Optional (Required if received from Cardinal)

AuthorizeCheckoutRequest.AuthorizedCheckout.RewardProgram.Number

Description: This is the account number printed on the card.

Details: Required

NOTE: This and the other RewardProgram fields can only be included if the accept_reward_program parameter to Checkout Initialization is set to 'true'

AuthorizeCheckoutRequest.AuthorizedCheckout.RewardProgram.RewardID

Description: Identifies the reward program offering that this entity is part of.  The value must be obtained from the Reward Program Offering Service as the RewardProgramOffering.Id.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.RewardProgram.RewardName

Description: Identifies the reward program offering that this entity is part of.  The value must be obtained from the Reward Program Offering Service as the RewardProgramOffering.Name.

Details: Required

AuthorizeCheckoutRequest.AuthorizedCheckout.RewardProgram.ExpiryMonth

Description: Month in which the reward program will expire as printed on the card.

Details: Required for reward program offerings that include an expiration date

AuthorizeCheckoutRequest.AuthorizedCheckout.RewardProgram.ExpiryYear

Description: Year in which the reward program will expire as printed on the card.

Details: Required for reward program offerings that include an expiration date

**.ExtensionPoint

Description: XSD type any reserved for future use.

Details: Optional

AuthorizeCheckoutRequest.AuthorizedCheckout.PreCheckoutTransactionId

Description: Unique ID of the precheckout transaction Id

Details: Optional

AuthorizeCheckoutRequest.AuthorizedCheckout.MerchantParameterId

Description: Unique ID of the merchant parameter Id

Details: Optional

Request Schema

            <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<AuthorizeCheckoutRequest>
  <OAuthToken>4sj4x12dxmw0bhwdt9h7q1hwduiisp1k3</OAuthToken>
  <AuthorizedCheckout>
      <Card>
         <BrandId>master</BrandId>
         <BrandName>MasterCard</BrandName>
         <AccountNumber>5215111111111111</AccountNumber>
         <BillingAddress>
             <City>Ofallon</City>
             <Country>US</Country>
             <CountrySubdivision>US-AR</CountrySubdivision>
             <Line1>123 Fake St</Line1>
             <Line2></Line2>
             <Line3></Line3>
             <PostalCode>32154</PostalCode>
         </BillingAddress>
         <CardHolderName>Lee M Cardholder</CardHolderName>
         <ExpiryMonth>3</ExpiryMonth>
         <ExpiryYear>2016</ExpiryYear>
      </Card>
      <Contact>
         <FirstName>Lee</FirstName>
         <MiddleName>Marvin</MiddleName>
         <LastName>CardHolder</LastName>
         <Gender>F</Gender>
         <DateOfBirth>
             <Year>1980</Year>
             <Month>2</Month>
             <Day>20</Day>
         </DateOfBirth>
         <Country>US</Country>
         <EmailAddress>test6@mc.com</EmailAddress>
         <PhoneNumber>6345644485</PhoneNumber>
      </Contact>
      <ShippingAddress>
         <City>Beverly Hills</City>
         <Country>US</Country>
         <CountrySubdivision>US-CA</CountrySubdivision>
         <Line1>123 Nowhere Street</Line1>
         <Line2></Line2>
         <Line3></Line3>
         <PostalCode>90210</PostalCode>
         <RecipientName>Lee Cardholder</RecipientName>
         <RecipientPhoneNumber>555-555-5555</RecipientPhoneNumber>
      </ShippingAddress>
      <AuthenticationOptions>
         <AuthenticateMethod>3DS</AuthenticateMethod>
         <CardEnrollmentMethod>Manual</CardEnrollmentMethod>
         <CAvv>jELUbgG+Tfj0AREACMLdCae+oIs=</CAvv>
         <EciFlag>02</EciFlag>
         <MasterCardAssignedID></MasterCardAssignedID>
         <PaResStatus>Y</PaResStatus>
         <SCEnrollmentStatus>Y</SCEnrollmentStatus>
         <SignatureVerification>Y</SignatureVerification>
         <Xid>akFUTFNhTkk1dlduWjBWeUVncjA=</Xid>
      </AuthenticationOptions>
      <RewardProgram>
         <RewardNumber>123728172</RewardNumber>
         <RewardId>123XYZ</RewardId>
         <RewardName>MyStarzReward</RewardName>
         <ExpiryMonth>12</ExpiryMonth>
         <ExpiryYear>2014</ExpiryYear>
      </RewardProgram>
  </AuthorizedCheckout>
  <PreCheckoutTransactionId>4sj4x12-dxmw0b-hwdt9h7q-1-hwdupih3-1ol</PreCheckoutTransactionId>
  <DeviceType>DESKTOP</DeviceType>
</AuthorizeCheckoutRequest>

Response Example

<?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <AuthorizeCheckoutResponse>
    <MerchantCallbackURL>http://www.masterpass.com/lightbox/Switch/callback.html?oauth_token=208a4feeda18917adffd22c23641ff67&oauth_verifier=367w4feeda18917adffd22c23641f321&checkout_resource_url=http%3A%2F%2Fapi.mastercard.com%3A8080%2Fonline%2Fmasterpass%2Fv6%2Fcheckout%2F423%3Fwallet%3Dphw&checkoutId=423</MerchantCallbackURL>

    <StepupPending>false</StepupPending>
    <OAuthVerifier>367w4feeda18917adffd22c23641f321</OAuthVerifier>
    <PreCheckoutTransactionId>4sj4x12-dxmw0b-hwdt9h7q-1-hwdupih3-1ol</PreCheckoutTransactionId>
  </AuthorizeCheckoutResponse>

In case an error occurs, Errors will be returned back as described in in Appendix: REST Service Error Handling section below.

Here is the list of errors that will be returned from this service.

Shipping Address Verification

The Partner must invoke the MasterPass Shipping Address Verification Service on legacy checkouts (v1 to v5) to determine if the merchant is able to ship to a given set of shipping addresses for the wallet user. Multiple shipping addresses can be provided in one call and the service will inspect each address independently so that some of them may be accepted and some rejected. The response from the service will insert an 'Accepted' status next to each of the address locations. An 'Accepted' value of 'true' indicates that the merchant will ship to that address. An 'Accepted' value of 'false' means that the address is outside of the merchant's supported shipping locations.

If an address is not accepted by the merchant then the user should not be allowed to choose that shipping address as part of the checkout.

It is recommended to cache the Shipping Address Verification Service response to avoid unnecessary duplicate calls to the service within a single checkout transaction. However, if there are any changes or additions to the shipping addresses, then the cached response should be cleared and the service should be called again.

Shipping Address Verification Service

This service allows the Partner to verify during checkout whether shipping addresses of the consumer are accepted by the merchant. The Service only checks whether the Country and Country Subdivision are acceptable, not a specific address. This is a REST service exposed on MasterCard OpenAPI infrastructure.

Here is the interface specification:

Resource URL

https://api.mastercard.com/masterpass/partner/v6/verify-shipping-address

Resource Method

POST

Data Format

XML

Request Schema

            <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="ShippingAddressVerificationRequest"type="ShippingAddressVerificationRequest"/>
  <xs:complexType name="ShippingAddressVerificationRequest">
      <xs:sequence>
         <xs:element name="OAuthToken" type="xs:string"/>
         <xs:element name="VerifiableAddresses" type="VerifiableAddresses"/>
         <xs:element name="ShippingLocationProfileName"type="xs:string"minOccurs="0"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="VerifiableAddresses">
      <xs:sequence>
         <xs:element name="VerifiableAddress" type="VerifiableAddress"nillable="false" maxOccurs="unbounded"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType type="VerifiableAddress">
      <xs:sequence>
         <xs:element name="Country" type="xs:string"/>
         <xs:element name="CountrySubdivision" type="xs:string"minOccurs="0"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
      <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
      </xs:sequence>
      <xs:anyAttribute />
  </xs:complexType>
</xs:schema>

Element Descriptions:

ShippingAddressVerificationRequest.OAuthToken

Description: This is oauth_token request parameter passed in during Checkout Initialization phase.

ShippingAddressVerificationRequest.VerifiableAddresses

Description: This is the list of verifiable addresses that need to be verified. Each verifiable address consists of two fields, Country and CountrySubdivision.

Country element MUST be set to standard 2-letter country code as defined in ISO 3166-2 (en.wikipedia.org/wiki/ISO_3166-2), such as US, GB etc.

CountrySubdivision element must always be set to an ISO 3166-2 code for the following countries: Australia, Canada, Japan and the United States. It is also recommended that ISO 3166-2 codes be used for subdivisions within other countries as well, although these will not be validated by the service and any free text value or a blank value is acceptable. As a reference, US subdivision codes are defined here: en.wikipedia.org/wiki/ISO_3166-2:US; examples: US-VA, US-MO.

ShippingAddressVerificationRequest.ShippingLocationProfileName

Description: This is an optional parameter that should be obtained from the value of the shipping_location_profile parameter in the Checkout Initialization call. While this parameter is listed as optional, it is required if you receive this parameter from the merchant in the Checkout Initialization URL. Without this parameter, if provided by the merchant, you could get a false positive/negative on the shipping address.

**.ExtensionPoint

Description: XSD type any reserved for future use.

Details: Optional

Response Example

  <ShippingAddressVerificationRequest>
  <OAuthToken>12342-ab212-aef23f-3223dd</OAuthToken>
  <VerifiableAddresses>
      <VerifiableAddress>
         <Country>US</Country>
         <CountrySubdivision>US-VA</CountrySubdivision>
      </VerifiableAddress>
      <VerifiableAddress>
         <Country>US</Country>
         <CountrySubdivision>US-MD</CountrySubdivision>
      </VerifiableAddress>
  </VerifiableAddresses>
</ShippingAddressVerificationRequest>

Response Schema

            <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="ShippingAddressVerificationResponse" type="ShippingAddressVerificationResponse"/>
  <xs:complexType name="ShippingAddressVerificationResponse">
      <xs:sequence>
         <xs:element name="OAuthToken" type="xs:string"/>
         <xs:element name="VerificationResults" type="VerificationResults"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="VerificationResults">
      <xs:sequence>
         <xs:element name="VerificationResult" type="VerificationResult"nillable="false" maxOccurs="unbounded"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="VerificationResult">
      <xs:sequence>
         <xs:element name="Country" type="xs:string"/>
         <xs:element name="CountrySubdivision" type="xs:string"minOccurs="0"/>
         <xs:element name="Accepted" type="xs:boolean"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
      <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any"/>
      </xs:sequence>
      <xs:anyAttribute/>
  </xs:complexType>
</xs:schema>

Element Descriptions

ShippingAddressVerificationResponse.VerificationResults

Descriptions: This is the list of verification results. Each verification result consists of Country, CountrySubdivision and Accepted elements. Accepted element is of Boolean type and indicates where a combination of Country and CountrySubdivision is accepted by the merchant for current checkout.

**.ExtensionPoint

Description: XSD type any reserved for future use.

Details: Optional

Response Example

<ShippingAddressVerificationResponse>
  <VerificationResults>
      <VerificationResult>
         <Country>US</Country>
         <CountrySubdivision>US-VA</CountrySubdivision>
         <Accepted>true</Accepted>
      </VerificationResult>
      <VerificationResult>
         <Country>US</Country>
         <CountrySubdivision>US-MD</CountrySubdivision>
         <Accepted>false</Accepted>
      </VerificationResult>
  </VerificationResults>
</ShippingAddressVerificationResponse>

In case an error occurs, Errors will be returned back as described in Appendix REST Service Error Handling section below.

Here is the list of errors that will be returned from this service.

Card Brands Service

Users are able to add cards from various brands to their wallet. Major credit card brands are accepted for checkouts. It is also possible for users to complete checkouts with certain store brand cards. The full list of supported card brands will continue to evolve. Partners must invoke the MasterPass Card Brands Service to get the most up to date list.

This service will work together with the acceptable_cards parameter in the checkout initialization URL, but the two will likely have different lists. The acceptable_cards parameter provides the list of card brands that are accepted by a particular merchant for a particular checkout. The Card Brands service provides a superset of that same list - the full list of all possible cards that may be accepted by a merchant within the specified country. This list also includes any Private Label Cards (Retail Store Cards) that are accepted within that country. The acceptable_cards list includes only the card id whereas the Card Brands Service also includes more detail about each of the brands.

The service will only return card brands that are available for the provided country. The display names of the cards will be translated into the provided locale (language + country) if applicable.

It is recommended to cache the response from the Card Brands Service to avoid unnecessary duplicate calls. However, the data should be cleared within 1 hour so that changes to the list are propagated quickly.

Card Brands Service Interface

This service allows the Partner to obtain the latest list of card brands that are supported for checkout. This is a REST service exposed on MasterCard OpenAPI infrastructure.

Resource URL

api.mastercard.com/masterpass/partner/v6/card-brands?language=<language>&country=<country>

Resource Method

GET

Data Format

XML

Query string Parameters

language
Description: The user's language
Details: Required
Example: en (for en_US locale)

country
Description: The user's country in ISO 3166-2 format
Details: Required
Example: US (for en_US locale)

Sample Request

api.mastercard.com/masterpass/partner/v6/card-brands?language=fr&country=CA

Response Schema

<?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="CardBrandsResponse" type="CardBrandsResponse"/>
  <xs:complexType name="CardBrandsResponse">
      <xs:sequence>
         <xs:element name="CardBrands" type="CardBrands"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"
         minOccurs="0" />
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="CardBrands">
      <xs:sequence>
         <xs:element name="CardBrand" type="CardBrand"maxOccurs="unbounded"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"
         minOccurs="0" />
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="CardBrand">
      <xs:sequence>
         <xs:element name="CvvRequired" type="xs:boolean"/>
         <xs:element name="DisplayName" type="xs:string"/>
         <xs:element name="ExpDateRequired" type="xs:boolean"/>
         <xs:element name="Id" type="xs:string"/>
         <xs:element name="logoUrl" type="xs:string"minOccurs="0"/>
         <xs:element name="PrivateLabelCard" type="xs:boolean"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
  <xs:complexType name="ExtensionPoint">
      <xs:sequence>
         <xs:any processContents="lax"namespace="##any" minOccurs="0"
         maxOccurs="unbounded" />
      </xs:sequence>
      <xs:anyAttribute />
  </xs:complexType>
</xs:schema>

Element Descriptions

CardBrand.DisplayName

Description: Friendly display name for the card. Users should see this display name when choosing which brand of card they are adding. The display name will be translated into the provided locale (language + country) if applicable. It must be provided along with checkout authorization in order to pass the friendly display name on to the merchant.

CardBrand.Id

Description: The code that uniquely identifies the card brand. This id can be up to 8 alphanumeric. It must be provided along with checkout authorization to identify the brand of card that is being used for the checkout.

CardBrand.logoURL

Description: This is not used currently. In the future it will be a URL to an image for the logo of the brand.

CardBrand.CvvRequired

Description: Indicates if the card security code must be provided along with the card data when cards of this brand are added to a wallet. The card security code, or card verification value (CVV) is the additional 3 or 4 digit code printed on the card. If required, a field must be enabled to collect the code along with the rest of the card data.

CardBrand.ExpDateRequired

Description: Indicates if the card expiration date must be provided along with the card data when cards of this brand are added to a wallet. All credit cards have an expiration date but some private label cards do not expire. If required, fields must be enabled to collect the month and year of expiration along with the rest of the card data.

CardBrand.PrivateLabelCard

Description: Indicates that the card is a private label card (for instance, a store brand card). For the most part these cards will behave identical to network-branded cards. However, for usability the private label cards should be grouped together for users when presenting the list of supported card brands to the user.

**.ExtensionPoint

Description: XSD type any reserved for future use.

Details: Optional

Response Example

  <CardBrandsResponse>
  <CardBrands>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>MasterCard</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>master</Id>
      <PrivateLabelCard>false</PrivateLabelCard>
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>Visa</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>visa</Id>
      <PrivateLabelCard>false</PrivateLabelCard>
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>American Express</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>amex</Id>
      <PrivateLabelCard>false</PrivateLabelCard>
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>Discover</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>discover</Id>
      <PrivateLabelCard>false</PrivateLabelCard>
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>Maestro</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>maestro</Id>
      <PrivateLabelCard>false</PrivateLabelCard>
      284050.1
      80
      MasterPassTM API Integration Guide
      1.4
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>Diner's Club</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>diners</Id>
      <PrivateLabelCard>false</PrivateLabelCard>
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>Carte du Monde</Name>
      <ExpDateRequired>true</ExpDateRequired>
      <Id>monde</Id>
      <logoUrl>http://…/logoUrl>
      <PrivateLabelCard>true</PrivateLabelCard>
    </CardBrand>
    <CardBrand>
      <CvvRequired>true</CvvRequired>
      <Name>Récompenses génériques</Name>
      <ExpDateRequired>false</ExpDateRequired>
      <Id>generic</Id>
      <logoUrl>http:/…/logoUrl>
      <PrivateLabelCard>true</PrivateLabelCard>
    </CardBrand>
  </CardBrands>
  </CardBrandsResponse>

In case an error occurs, Errors will be returned back as described in Appendix REST Service Error Handling section below.

Here is the list of errors that will be returned from this service.

Pairing Initialization (New for v6)

The pairing process starts when a shopper clicks the Connect with MasterPass button on a merchant site. This begins a set of exchanges that will bring the shopper through MasterPass, to the Partner site and back out to the merchant again. If the shopper agrees to pair their wallet with the merchant, the shopper's checkout data will be available pre-checkout going forward. Below are the query string parameters attached to the pairing URL, hosted by the wallet, during a pairing flow.

• flow
  This will define the process that merchant is requesting. It is important if the Partner uses the same URL for Pairing, Checkout, Account Maintenance, etc.
• merchant_return_url
  This is the merchant URL to return to when the consumer clicks the "Return to Merchant" link in the header. Partner must display the "Return to Merchant" link in the header. This is a required parameter.
• locale
  This defines the desired locale to be used when displaying pages
• targetOrigin
  This is the origin URL of the request.
• merchantCheckoutId
  This is a unique value to identify the merchant.
• version
  This is the checkout version the merchant supports. This is a required parameter and is an extremely important parameter in the Checkout Authorization Service. The value provided here will be used to generate the Checkout Authorization endpoint URL, and as noted below, will influence the data sent back to MasterPass. Example v6, v5, etc.
• requireShippingDestination
  This flag indicates whether shipping address is required for the checkout. This is an optional parameter, defaulted to true if not passed. Valid values are: true, false. The value is case insensitive.
• loyaltyEnabled
  This optional parameter indicates if the merchant will accept a reward or loyalty program in the Checkout Authorization call.  The partner application should only allow users to select a loyalty program for this checkout if the value of this parameter is 'true'.  The default value is 'false'.  This parameter is only valid for merchants using v4 or later of the Merchant Checkout API and then only sent if the Merchant accepts the loyalty program for the transaction.
• allowedCardTypes
  This parameter indicates card types accepted by the merchant. It is a comma separated list of card types. The following are valid card types: master, visa, amex, discover, maestro, diners, jcb. Card types in the list are case insensitive. For example VISA, MASTER and visa, MASTER are all valid. This is an optional parameter; all cards are accepted if not passed in.

Partner must only display MasterPass-supported cards for the consumer to choose from during a MasterPass transaction.

• pairingRequestToken
  This is OAuth Request Token acquired by the merchant for this pairing attempt. This is the primary identifier for the pairing and it will expire in 15 minutes. This is a required parameter if pairing.
• requestedDataTypes
  This field indicates the data fields a connected merchant would like access to. It is a required parameter if pairing is requested. The following are valid data types: ADDRESS, CARD, PROFILE, REWARD_PROGRAM.
• requestPairing
  This field indicates that the merchant would like to connect to a user's wallet.
• requestExpressCheckout
  This field indicates that the merchant would like enable express checkout  with a consumer.
• walletId
  This field uniquely identifies the partner hosted wallet.
• precheckoutTransactionId
  This field uniquely identifies the during a connected checkout. The merchant receives this value when they request precheckout data.
• silentPairing
  This field indicates that a Silent Pairing enabled merchant is requesting pairing. This parameter will only be used by MasterCard for MasterCard innovative products at this stage.
• merchantSuppressSignup

  This optional parameter indicates that no signup screens should be shown during the flow. A merchant might request this if they have a shorter timeout for this experience.

Authorize Pairing (New for v6)

Users have the ability to pair their wallet with merchants to share card aliases, addresses, loyalty program, and profiles. The wallet will make this call after a user has consented to share their data with a merchant.

Authorize Pairing Interface

This service allows the Partner to establish a wallet pairing with a merchant. This is a REST service exposed on MasterCard OpenAPI infrastructure.

Resource URL

api.mastercard.com/masterpass/partner/v6/pairing

Resource Method

POST

Data Format

XML

Request Schema

<?xml version="1.0" encoding="UTF-8"standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="AuthorizePairingRequest" type="AuthorizePairingRequest"/>
  <xs:complexType name="AuthorizePairingRequest">
      <xs:sequence>
         <xs:element name="PairingDataTypes" type="PairingDataTypes"/>
         <xs:element name="OAuthToken" type="xs:string"/>
         <xs:element name="MerchantCheckoutId" type="xs:string"/>
         <xs:element name="ConsumerWalletId" type="xs:string"/>
         <xs:element name="WalletId" type="xs:string"/>
         <xs:element name="ExpressCheckout" type="xs:boolean"/>
         <xs:element name="ConsumerCountry" type="Country"/>
         <xs:element name="SilentPairing" type="xs:boolean"minOccurs="0" maxOccurs="1"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:element name="PairingDataTypes" type="PairingDataTypes"/>
  <xs:complexType name="PairingDataTypes">
      <xs:sequence>
         <xs:element name="PairingDataType" type="PairingDataType"minOccurs="1" maxOccurs="unbounded"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"
         minOccurs="0" />
      </xs:sequence>
  </xs:complexType>
  <xs:element name="PairingDataType" type="PairingDataType"/>
  <xs:complexType name="PairingDataType">
      <xs:sequence>
         <xs:element name="Type">
             <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:enumeration value="CARD"/>
                    <xs:enumeration value="ADDRESS"/>
                    <xs:enumeration value="REWARD_PROGRAM"/>
                    <xs:enumeration value="PROFILE"/>
                </xs:restriction>
             </xs:simpleType>
         </xs:element>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
      <xs:element name="Country" type="Country"/>
      <xs:complexType name="Country">
         <xs:sequence>
             <xs:element name="Code">
                <xs:simpleType>
                    <xs:restriction base="xs:string">
                       <xs:pattern value="[A-Z]{3}"/>
                    </xs:restriction>
                </xs:simpleType>
             </xs:element>
             <xs:element name="Name" type="xs:string"/>
             <xs:element name="CallingCode" type="xs:string"/>
             <xs:element name="Locale" type="Locale"minOccurs="0" maxOccurs="unbounded"/>
             <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
      </xs:complexType>
      <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
      <xs:complexType name="ExtensionPoint">
         <xs:sequence>
             <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any">
             </xs:sequence>
             <xs:anyAttribute/>
         </xs:complexType>
         <xs:element name="Locale" type="Locale"/>
         <xs:complexType name="Locale">
             <xs:sequence>
                <xs:element name="Locale" type="xs:string"minOccurs="0"/>
                <xs:element name="Language" type="xs:string"minOccurs="0"/>
                <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
             </xs:sequence>
         </xs:complexType>
      </xs:schema>


Element Descriptions:

AuthorizePairingRequest.PairingDataTypes

Description: These are the types of data that the wallet and consumer have agreed to share with the merchants.
Details: Required
Example: Card, ShippingAddress, RewardProgram, Profile

AuthorizePairingRequest.OAuthToken

Description: This is oauth_token request parameter passed in during Checkout Initialization phase.
Details: Required

AuthorizePairingRequest.MerchantCheckoutId

Description: Unique identifier for the Merchant that wishes to pair. This is received in the pairing initialization redirect.
Details: Required
Example: a4d6x3165n12thw1gpy151hw2jqjmy4s5

AuthorizePairingRequest.ConsumerWalletId

Description: A unique identifier for the consumer's wallet. This is up to the wallet partner to provide
Details: Required

AuthorizePairingRequest.WalletId

Description: Partition name MasterPass uses to identify the wallet. This is received in the pairing initialization redirect.
Details: Required
Example: a4d6x3165n12thw1gpy151hw2jqjmy4s5

AuthorizePairingRequest.ExpressCheckout

Description: True if the consumer has agreed to allow express checkout with the merchant.
Details: Required, boolean
Example: true, false

AuthorizePairingRequest.ConsumerCountry

Description: Consumer wallet country code. Certain countries have strict laws about sharing user data. This is required to verify that pairing should be allowed.

AuthorizePairingRequest.ConsumerCountry.Code

Description: Shorthand code to identify the country
Details: 3 character alpha string indicating the country
Example: USA

AuthorizePairingRequest.ConsumerCountry.CallingCode

Description: Calling code for the consumer's country
Details: String, required
Example: 011

AuthorizePairingRequest.ConsumerCountry.Locale

Description: The locale of the user
Details: Optional

AuthorizePairingRequest.ConsumerCountry.Locale.Locale

Description: The user's locale
Details: String, Optional
Example: United States

AuthorizePairingRequest.ConsumerCountry.Locale.Language

Description: The user's language
Details: String, Optional
Example: English

**.ExtensionPoint

Description: XSD type any reserved for future use.

Details: Optional

Request Example

<AuthorizePairingRequest>
  <PairingDataTypes>
      <PairingDataType>
         <Type>ADDRESS</Type>
      </PairingDataType>
      <PairingDataType>
         <Type>PROFILE</Type>
      </PairingDataType>
      <PairingDataType>
         <Type>CARD</Type>
      </PairingDataType>
  </PairingDataTypes>
  <OAuthToken>3b66050f9fdf83a95f2c83c19b3ea4b5c7743367</OAuthToken>
  <MerchantCheckoutId>a4d6x3165n12thw1gpy151hw2jqjmy4s5</MerchantCheckoutId>
  <ConsumerWalletId>42</ConsumerWalletId>
  <WalletId>PHWallet</WalletId>
  <ConsumerCountry>
      <Code>USA</Code>
      <Name>United States</Name>
      <CallingCode>011</CallingCode>
  </ConsumerCountry>
</AuthorizePairingRequest>

Response Schema

<?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="AuthorizePairingResponse" type="AuthorizePairingResponse"/>
  <xs:complexType name="AuthorizePairingResponse">
      <xs:sequence>
         <xs:element name="MerchantCallbackURL" type="xs:string"/>
         <xs:element name="VerifierToken" type="xs:string"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:complexType name="ExtensionPoint">
      <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
      </xs:sequence>
      <xs:anyAttribute />
  </xs:complexType>
</xs:schema>

Element Descriptions

AuthorizePairingResponse.VerifierToken

Description: This is the verifier token response parameter received during the authorize pairing phase.  You will take this verifier and the value from the merchant_return_url and use them to construct a redirect to MasterPass to complete the pairing flow.
Details: String

Example: 473d2fc4f476a5b8a556eb074afe8eb789d1bfd7

Sandbox redirect URL: https://sandbox.masterpass.com/lightbox/Switch/callback.html?pairingVerifier=0fea976639aa76adc296490a056eb181cf7148e7

Production redirect URL: https://masterpass.com/lightbox/Switch/callback.html?pairingVerifier=473d2fc4f476a5b8a556eb074afe8eb789d1bfd7

AuthorizePairingResponse.MerchantCallbackURL

Description: The merchant callback URL embeds all the information needed by the merchant to proceed with the checkout as request parameters. The partner must redirect the browser to this URL, after it is returned.

The following steps should be taken to ensure all parameters within the callback URL retain proper encoding:

1. HTML decodes the entire MerchantCallbackURL.
2. URL Decode the entire MerchantCallbackURL.
3. URL encodes the oauth_token, oauth_verifier, and checkout_resource_url liarameter values.
4. Send the URL to the user as a redirect to the browser.

Steps 2 and 3 look redundant since the result of step 3 looks just like step 1, but these steps are needed in case the merchant adds another URL to their callback URL as a parameter.

Example

Original MerchantCallbackURL:

https://www.examplemerchant.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&amp;oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&amp;checkout_resource_url=https%3A%2F%2Fapi.mastercard.com%2Fonline%2Fv4%2Fcheckout%2F3020426%3Fwallet%3Dphw

HTML Decoded:

https://www.tasteaway.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&checkout_resource_url=https%3A%2F%2Fapi.mastercard.com%2Fonline%2Fv4%2Fcheckout%2F3020426%3Fwallet%3Dphw

URL Decoded:

https://www.tasteaway.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&checkout_resource_url=https://api.mastercard.com/online/v4/checkout/3020426?wallet=phw

URL Encoded oauth_token, oauth_verifier, and checkout_resource_url parameter values

https://www.tasteaway.com/checkout/mp_callback/22467?oauth_token=093be2d6066cdf809c724d3f2d919f91&oauth_verifier=7f407eebffcdbefa30e5d2bf36900022&checkout_resource_url=https%3A%2F%2Fapi.mastercard.com%2Fonline%2Fv4%2Fcheckout%2F3020426%3Fwallet%3Dphw

**.ExtensionPoint

Description: XSD type any reserved for future use.

Details: Optional

Response Example

  <?xmlversion="1.0"encoding="UTF-8"standalone="yes"?>
  <AuthorizePairingResponse>
    <VerifierToken>b17cd261ad9e34007ea8e3dd118c3c667e820a70</VerifierToken>
    <MerchantCallbackURL>http://www.masterpass.com/lightbox/Switch/callback.html?oauth_token= 208a4feeda18917adffd22c23641ff67&oauth_verifier= 367w4feeda18917adffd22c23641f321&checkout_resource_url=http%3A%2F%2Fapi.mastercard.com%3A8080%2Fonline%2Fmasterpass%2Fv6%2Fcheckout%2F423%3Fwallet%3Dphw&checkoutId=423</MerchantCallbackURL>
  </AuthorizePairingResponse>

In case an error occurs, Errors will be returned back as described in Appendix REST Service Error Handling section below.

Here is the list of errors that will be returned from this service.

<?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="Merchant" type="Merchant"/>
  <xs:complexType name="Merchant">
      <xs:sequence>
         <xs:element name="Name" type="xs:string"/>
         <xs:element name="DisplayName" type="xs:string"minOccurs="0"/>
         <xs:element name="MerchantType" type="xs:string"minOccurs="0"/>
         <xs:element name="ProductionUrl" type="xs:string"/>
         <xs:element name="CardinalMerchantId" type="xs:string"/>
         <xs:element name="AuthOptions" type="xs:string"/>
         <xs:element name="SandboxUrl" type="xs:string"/>
         <xs:element name="MerchantCheckoutId" type="xs:string"/>
         <xs:element name="Logo" type="Logo"minOccurs="0"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:element name="Logo" type="Logo"/>
  <xs:complexType name="Logo">
      <xs:sequence>
         <xs:element name="Ref" type="xs:string"/>
         <xs:element name="Height" type="xs:string"minOccurs="0"/>
         <xs:element name="Width" type="xs:string"minOccurs="0"/>
         <xs:element name="BackgroundColor" type="xs:string"minOccurs="0"/>
         <xs:element name="Url" type="xs:anyURI"minOccurs="0"/>
         <xs:element name="LongDescription" type="xs:string"minOccurs="0"/>
         <xs:element name="AlternateText" type="xs:string"minOccurs="0"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
  </xs:complexType>
  <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
  <xs:complexType name="ExtensionPoint">
      <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any"/>
      </xs:sequence>
      <xs:anyAttribute/>
  </xs:complexType>
</xs:schema>

  <Merchant>
    <Name>Fmjtmy Qmvkrqe Uaaexk Iimjyiym Eqqwms</Name>
    <DisplayName>Ockbkso Yqrotx Npmhuednip Lxtymnwzxm Jqqnxlqgu</DisplayName>
    <ProductionUrl>https://wjikur.com</ProductionUrl>
    <SandboxUrl>https://mqpgxa.com</SandboxUrl>
    <Logo>    <Url>http://www.mastercard.us/_globalAssets/img/nav/navl_logo_mastercardcom.png</Url>
    </Logo>
  </Merchant>

  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="ConnectedMerchantsRequest" type="ConnectedMerchantsRequest"/>
    <xs:complexType name="ConnectedMerchantsRequest">
      <xs:sequence>
        <xs:element name="ConsumerWalletId" type="xs:string"/>
        <xs:element name="WalletId" type="xs:string"/>
        <xs:element name="StartDate" type="xs:dateTime"/>
        <xs:element name="EndDate" type="xs:dateTime"/>
        <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
    </xs:complexType>
    <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
    <xs:complexType name="ExtensionPoint">
        <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
        </xs:sequence>
      <xs:anyAttribute />
    </xs:complexType>
  </xs:schema>

<ConnectedMerchantsRequest>
  <ConsumerWalletId>8</ConsumerWalletId>
  <WalletId>Mobile</WalletId>
</ConnectedMerchantsRequest>

<?xml version="1.0"encoding="UTF-8" standalone="yes"?>
<xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:element name="ConnectedMerchantsResponse" type="ConnectedMerchantsResponse"/>
  <xs:complexType name="ConnectedMerchantsResponse">
    <xs:sequence>
      <xs:element name="Merchants" type="Merchant"minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:element name="Merchant" type="Merchant"/>
  <xs:complexType name="Merchant">
    <xs:sequence>
      <xs:element name="Name" type="xs:string"/>
      <xs:element name="DisplayName" type="xs:string"minOccurs="0" />
      <xs:element name="MerchantType" type="xs:string"minOccurs="0" />
      <xs:element name="ProductionUrl" type="xs:string"/>
      <xs:element name="CardinalMerchantId" type="xs:string"/>
      <xs:element name="AuthOptions" type="xs:string"/>
      <xs:element name="SandboxUrl" type="xs:string"/>
      <xs:element name="MerchantCheckoutId" type="xs:string"/>
      <xs:element name="Logo" type="Logo"minOccurs="0" />
      <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0" />
    </xs:sequence>
  </xs:complexType>
  <xs:element name="Logo" type="Logo"/>
  <xs:complexType name="Logo">
    <xs:sequence>
      <xs:element name="Ref" type="xs:string"/>
      <xs:element name="Height" type="xs:string"minOccurs="0" />
      <xs:element name="Width" type="xs:string"minOccurs="0" />
      <xs:element name="BackgroundColor" type="xs:string" minOccurs="0"/>
      <xs:element name="Url" type="xs:anyURI"minOccurs="0" />
      <xs:element name="LongDescription" type="xs:string" minOccurs="0"/>
      <xs:element name="AlternateText" type="xs:string" minOccurs="0"/>
      <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
  <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
  <xs:complexType name="ExtensionPoint">
    <xs:sequence>
      <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
    </xs:sequence>
  <xs:anyAttribute />
  </xs:complexType>
</xs:schema>


  <ConnectedMerchantsResponse>
    <Merchants>
      <Name>Sample Merchant</Name>
      <ProductionUrl>https://samplemerchant.com</ProductionUrl>
      <SandboxUrl>https://test.samplemerchant.com</SandboxUrl>
      <MerchantCheckoutId>a4a6x3oy2gqz2hhdta4491hhe2t444o79</MerchantCheckoutId>
      <Logo/>
    </Merchants>
  </ConnectedMerchantsResponse>

  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
  <xs:element name="ConnectionHistoryRequest" type="ConnectionHistoryRequest"/>
  <xs:element name="ConnectionHistoryRequest"/>
    <xs:complexType name="ConnectionHistoryRequest">
      <xs:sequence>
        <xs:element name="MerchantCheckoutId" type="xs:string"/>
        <xs:element name="StartDate" type="xs:dateTime"/>
        <xs:element name="EndDate" type="xs:dateTime"/>
        <xs:element name="WalletId" type="xs:string"/>
        <xs:element name="ConsumerWalletId" type="xs:string"/>
        <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
      </xs:sequence>
    </xs:complexType>
    <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
    <xs:complexType name="ExtensionPoint">
      <xs:sequence>
        <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any"/>
      </xs:sequence>
    <xs:anyAttribute/>
    </xs:complexType>
  </xs:schema>

  <ConnectionHistoryRequest>
    <MerchantCheckoutId>654161</MerchantCheckoutId>
    <MerchantType>AAA</MerchantType>
    <StartDate></StartDate>
    <EndDate></EndDate>
    <WalletId>646198</WalletId>
    <WalletConsumerId>87564497</WalletConsumerId>
  </ConnectionHistoryRequest>

  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="ConnectionHistory" type="ConnectionHistory"/>
     <xs:complexType name="ConnectionHistory">
         <xs:sequence>
            <xs:element name="MerchantInfo" type="MerchantInfo"/>
            <xs:element name="TimeStamp" type="xs:dateTime"/>
            <xs:element name="activityString" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="MerchantInfo" type="MerchantInfo"/>
     <xs:complexType name="MerchantInfo">
         <xs:sequence>
            <xs:element name="Name" type="xs:string"/>
            <xs:element name="Id" type="xs:string"/>
            <xs:element name="Type" type="xs:string"/>
            <xs:element name="ActivityList" type="ActivityList"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ActivityList" type="ActivityList"/>
     <xs:complexType name="ActivityList">
         <xs:sequence>
            <xs:element name="Activity" type="Activity"minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="Activity" type="Activity"/>
     <xs:complexType name="Activity">
         <xs:sequence>
            <xs:element name="Date" type="xs:dateTime"/>
            <xs:element name="ExpressCheckout" type="xs:string"/>
            <xs:element name="Pairing" type="xs:string"/>
            <xs:element name="PairingDataType" type="PairingDataType"/>
            <xs:element name="PrecheckoutDataType" type="PairingDataType"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PairingDataType" type="PairingDataType"/>
     <xs:complexType name="PairingDataType">
         <xs:sequence>
            <xs:element name="Type">
                <xs:simpleType>
                   <xs:restriction base="xs:string">
                       <xs:enumeration value="CARD"/>
                       <xs:enumeration value="ADDRESS"/>
                       <xs:enumeration value="REWARD_PROGRAM"/>
                       <xs:enumeration value="PROFILE"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any"/>
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>

  <?xml version="1.0"encoding="UTF-8"?>
  <ConnectionHistory>
     <MerchantInfo>
         <Name>MerchantName</Name>
         <Id>12345</Id>
         <Type>MerchantType</Type>
         <ActivityList>
            <Activity>
                <Date>2001-12-31T12:00:00</Date>
                <ExpressCheckout>ExpressCheckout</ExpressCheckout>
                <Pairing>Pairing</Pairing>
                <PairingDataType>
                   <Type>CARD</Type>
                </PairingDataType>
                <PrecheckoutDataType>
                   <Type>PROFILE</Type>
                </PrecheckoutDataType>
            </Activity>
         </ActivityList>
     </MerchantInfo>
     <TimeStamp>2001-12-31T12:00:00</TimeStamp>
     <activityString>activityString</activityString>
  </ConnectionHistory>

  <?xml version="1.0"encoding="UTF-8"?>
  <xs:element name="WalletPrecheckoutDataRequest"type="WalletPrecheckoutDataRequest"/>
  <xs:complexType name="WalletPrecheckoutDataRequest">
     <xs:sequence>
         <xs:element name="OauthToken" type="xs:string"/>
         <xs:element name="ConsumerWalletId" type="xs:string"/>
         <xs:element name="PrecheckoutTransactionId" type="xs:string"/>
         <xs:element name="PairingDataTypes" type="PairingDataTypes"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         <xs:element name="WalletId" type="xs:string"/>
     </xs:sequence>
  </xs:complexType>
  <xs:element name="PairingDataTypes"type="PairingDataTypes"/>
  <xs:complexType name="PairingDataTypes">
     <xs:sequence>
         <xs:element name="PairingDataType" type="PairingDataType"minOccurs="1" maxOccurs="unbounded"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"
         minOccurs="0" />
     </xs:sequence>
  </xs:complexType>
  <xs:element name="PairingDataType"type="PairingDataType"/>
  <xs:complexType name="PairingDataType">
     <xs:sequence>
         <xs:element name="Type">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                   <xs:enumeration value="CARD"/>
                   <xs:enumeration value="ADDRESS"/>
                   <xs:enumeration value="REWARD_PROGRAM"/>
                   <xs:enumeration value="PROFILE"/>
                </xs:restriction>
            </xs:simpleType>
         </xs:element>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
     </xs:sequence>
  </xs:complexType>
  <xs:element name="ExtensionPoint"type="ExtensionPoint"/>
  <xs:complexType name="ExtensionPoint">
     <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
     </xs:sequence>
     <xs:anyAttribute />
  </xs:complexType>
  </xs:schema>

  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="AuthorizePrecheckoutRequest"type="AuthorizePrecheckoutRequest"/>
     <xs:complexType name="AuthorizePrecheckoutRequest">
         <xs:sequence>
            <xs:element name="PrecheckoutData" type="PrecheckoutData"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PrecheckoutData" type="PrecheckoutData"/>
     <xs:complexType name="PrecheckoutData">
         <xs:sequence>
            <xs:element name="Cards" type="PrecheckoutCards"/>
            <xs:element name="Contact" type="Contact"minOccurs="0"/>
            <xs:element name="ShippingAddresses" type="PrecheckoutShippingAddresses"/>
            <xs:element name="RewardPrograms" type="PrecheckoutRewardPrograms"/>
            <xs:element name="WalletName" type="xs:string"minOccurs="1"/>
            <xs:element name="PrecheckoutTransactionId" type="xs:string"/>
            <xs:element name="ConsumerWalletId" type="xs:string"minOccurs="1"/>
            <xs:element name="Errors" type="Errors"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PrecheckoutCards" type="PrecheckoutCards"/>
     <xs:complexType name="PrecheckoutCards">
         <xs:sequence>
            <xs:element name="Card" type="PrecheckoutCard"minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PrecheckoutCard" type="PrecheckoutCard"/>
     <xs:complexType name="PrecheckoutCard">
         <xs:sequence>
            <xs:element name="BrandId" type="xs:string"/>
            <xs:element name="BrandName" type="xs:string"/>
            <xs:element name="BillingAddress" type="Address"/>
            <xs:element name="CardHolderName" type="xs:string"/>
            <xs:element name="ExpiryMonth" type="Month"minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year"minOccurs="0"/>
            <xs:element name="CardId" type="xs:string"></xs:element>
            <xs:element name="LastFour" type="xs:string"/>
            <xs:element name="CardAlias" type="xs:string"/>
            <xs:element name="SelectedAsDefault" type="xs:boolean"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PrecheckoutShippingAddresses"type="PrecheckoutShippingAddresses"/>
     <xs:complexType name="PrecheckoutShippingAddresses">
         <xs:sequence>
            <xs:element name="ShippingAddress" type="PrecheckoutShippingAddress"minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PrecheckoutShippingAddress" type="PrecheckoutShippingAddress"/>
     <xs:complexType name="PrecheckoutShippingAddress">
         <xs:complexContent>
            <xs:extension base="Address">
                <xs:sequence>
                   <xs:element name="RecipientName" type="xs:string"/>
                   <xs:element name="RecipientPhoneNumber" type="xs:string"/>
                   <xs:element name="AddressId" type="xs:string"/>
                   <xs:element name="SelectedAsDefault" type="xs:boolean"/>
                   <xs:element name="ShippingAlias" type="xs:string"/>
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
     </xs:complexType>
     <xs:element name="PrecheckoutRewardPrograms" type="PrecheckoutRewardPrograms"/>
     <xs:complexType name="PrecheckoutRewardPrograms">
         <xs:sequence>
            <xs:element name="RewardProgram" type="PrecheckoutRewardProgram"minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="PrecheckoutRewardProgram" type="PrecheckoutRewardProgram"/>
     <xs:complexType name="PrecheckoutRewardProgram">
         <xs:sequence>
            <xs:element name="RewardNumber" type="xs:string"/>
            <xs:element name="RewardId" type="xs:string"/>
            <xs:element name="RewardName" type="xs:string"minOccurs="0"/>
            <xs:element name="ExpiryMonth" type="Month"minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year"minOccurs="0"/>
            <xs:element name="RewardProgramId" type="xs:string"/>
            <xs:element name="RewardLogoUrl" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Contact">
         <xs:sequence>
            <xs:element name="FirstName" type="NonEmptyString"/>
            <xs:element name="MiddleName" minOccurs="0">
                <xs:simpleType>
                   <xs:restriction base="xs:string">
                       <xs:minLength value="1"/>
                       <xs:maxLength value="150"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="LastName" type="NonEmptyString"/>
            <xs:element name="Gender" type="Gender"minOccurs="0"/>
            <xs:element name="DateOfBirth" type="DateOfBirth"minOccurs="0"/>
            <xs:element name="NationalID" minOccurs="0">
                <xs:simpleType>
                   <xs:restriction base="xs:string">
                       <xs:minLength value="1"/>
                       <xs:maxLength value="150"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Country" type="Country"/>
            <xs:element name="EmailAddress" type="EmailAddress"/>
            <xs:element name="PhoneNumber" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Address">
         <xs:sequence>
            <xs:element name="City" type="NonEmptyString"/>
            <xs:element name="Country" type="Country"/>
            <xs:element name="CountrySubdivision" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="Line1" type="NonEmptyString"/>
            <xs:element name="Line2" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="Line3" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="PostalCode" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:simpleType name="NonEmptyString">
         <xs:restriction base="xs:string">
            <xs:minLength value="1"/>
            <xs:whiteSpace value="collapse"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="Country">
         <xs:restriction base="xs:string">
            <xs:pattern value="[A-Z]{2}"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="EmailAddress">
         <xs:restriction base="xs:string">
            <xs:pattern value="[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*@[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="Gender">
         <xs:restriction base="xs:token">
            <xs:enumeration value="M"/>
            <xs:enumeration value="F"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:complexType name="DateOfBirth">
         <xs:sequence>
            <xs:element name="Year">
                <xs:simpleType>
                   <xs:restriction base="xs:int">
                       <xs:minInclusive value="1900"/>
                       <xs:pattern value="\d{4}"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Month" type="Month"/>
            <xs:element name="Day">
                <xs:simpleType>
                   <xs:restriction base="xs:int">
                       <xs:minInclusive value="1"/>
                       <xs:maxInclusive value="31"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:simpleType name="Month">
         <xs:restriction base="xs:int">
            <xs:minInclusive value="1"/>
            <xs:maxInclusive value="12"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="Year">
         <xs:restriction base="xs:int">
            <xs:minInclusive value="2013"/>
            <xs:pattern value="\d{4}"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:complexType name="Error">
         <xs:sequence>
            <xs:element name="Description" type="xs:string"minOccurs="0"/>
            <xs:element name="ReasonCode" type="xs:string"/>
            <xs:element name="Recoverable" type="xs:boolean"/>
            <xs:element name="Source" type="xs:string"/>
            <xs:element name="Details" type="Details"minOccurs="0" maxOccurs="1"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Errors">
         <xs:sequence>
            <xs:element name="Error" type="Error"minOccurs="0" maxOccurs="unbounded"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Details">
         <xs:sequence>
            <xs:element name="Detail" type="Detail"minOccurs="0" maxOccurs="unbounded"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Detail">
         <xs:sequence>
            <xs:element name="Name" type="xs:string"/>
            <xs:element name="Value" type="xs:string"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any"/>
         </xs:sequence>
         <xs:anyAttribute/>
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0"encoding="UTF-8"?>
  <AuthorizePrecheckoutRequest>
     <PrecheckoutData>
         <Cards>
            <Card>
                <BrandId>master</BrandId>
                <BrandName>MasterCard</BrandName>
                <BillingAddress>
                   <City>123 Fake St</City>
                   <Country>US</Country>
                   <CountrySubdivision>US-MO</CountrySubdivision>
                   <Line1>326 Fake St</Line1>
                   <PostalCode>63146</PostalCode>
                </BillingAddress>
                <CardHolderName>Joe Cardholder</CardHolderName>
                <ExpiryMonth>02</ExpiryMonth>
                <ExpiryYear>2017</ExpiryYear>
                <CardId>52</CardId>
                <LastFour>1234</LastFour>
                <CardAlias>MasterCard card</CardAlias>
                <SelectedAsDefault>true</SelectedAsDefault>
            </Card>
         </Cards>
         <Contact>
            <FirstName>Joe</FirstName>
            <MiddleName>M</MiddleName>
            <LastName>Cardholder</LastName>
            <Gender>M</Gender>
            <DateOfBirth>
                <Year>1984</Year>
                <Month>12</Month>
                <Day>19</Day>
            </DateOfBirth>
            <NationalID>123456789</NationalID>
            <Country>US</Country>
            <EmailAddress>joe@gmail.com</EmailAddress>
            <PhoneNumber>555-5555</PhoneNumber>
         </Contact>
         <ShippingAddresses>
            <ShippingAddress>
                <City>OFallon</City>
                <Country>US</Country>
                <CountrySubdivision>US-MO</CountrySubdivision>
                <Line1>2222 Fake Avenue</Line1>
                <PostalCode>63025</PostalCode>
                <RecipientName>Joe Cardholder</RecipientName>
                <RecipientPhoneNumber>555-5555</RecipientPhoneNumber>
                <AddressId>52</AddressId>
               <SelectedAsDefault>true</SelectedAsDefault>
                <ShippingAlias>Home</ShippingAlias>
            </ShippingAddress>
         </ShippingAddresses>
         <WalletId>Mobile</WalletId>    <PrecheckoutTransactionId>P1g2j234987kjfg0fg6</PrecheckoutTransactionId>
         <ConsumerWalletId>11235813</ConsumerWalletId>
     </PrecheckoutData>
  </AuthorizePrecheckoutRequest>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="AuthorizePrecheckoutResponse"type="AuthorizePrecheckoutResponse"/>
     <xs:complexType name="AuthorizePrecheckoutResponse">
         <xs:sequence>
            <xs:element name="Status" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any"/>
         </xs:sequence>
         <xs:anyAttribute/>
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8"?>
    <AuthorizePrecheckoutResponse>
      <Status>Status</Status>
    </AuthorizePrecheckoutResponse>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
     version="1.0">
     <xs:element name="WalletExpressCheckoutRequest"type="WalletExpressCheckoutRequest"/>
     <xs:complexType name="WalletExpressCheckoutRequest">
         <xs:sequence>
            <xs:element name="MerchantCheckoutId" type="xs:string"/>
            <xs:element name="OauthToken" type="xs:string"/>
            <xs:element name="CurrencyCode" type="xs:string"/>
            <xs:element name="OrderAmount" type="xs:long"/>
            <xs:element name="PrecheckoutTransactionId" type="xs:string"/>
            <xs:element name="ConsumerWalletId" type="xs:string"/>
            <xs:element name="MerchantParameterId" type="xs:string"/>
            <xs:element name="CardId" type="xs:string"/>
            <xs:element name="ShippingAddressId" type="xs:string"/>
            <xs:element name="RewardProgramId" type="xs:string"minOccurs="0"/>
            <xs:element name="WalletId" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8"?>
    <WalletExpressCheckoutRequest>
    <MerchantCheckoutId>sfasd897sadfhjkl4w329fa_sadfj37</MerchantCheckoutId>
    <OauthToken>f7f16d8462a9424365498afade20caaa</OauthToken>
    <CurrencyCode>CurrencyCode</CurrencyCode>
    <OrderAmount>152.36</OrderAmount>
    <PrecheckoutTransactionId>896498734</PrecheckoutTransactionId>
    <ConsumerWalletId>464697</ConsumerWalletId>
    <MerchantParameterId>149da8645h5</MerchantParameterId>
    <CardId>35466</CardId>
    <ShippingAddressId>665644</ShippingAddressId>
    <RewardProgramId>987646</RewardProgramId>
    <WalletId>67496464</WalletId>
  </WalletExpressCheckoutRequest>


  <?xml version="1.0"encoding="UTF-8"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="Response" type="Response"/>
     <xs:complexType name="Response ">
         <xs:sequence>
            <xs:element name="Message" type="xs:string"minOccurs="0" />
            <xs:element name="Errors" type="Errors"minOccurs="0" />
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="Error" type="Error"/>
     <xs:complexType name="Error">
         <xs:sequence>
            <xs:element name="Description" type="xs:string"/>
            <xs:element name="ReasonCode" type="xs:string"/>
            <xs:element name="Recoverable" type="xs:boolean"/>
            <xs:element name="Source" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="Errors" type="Errors"/>
     <xs:complexType name="Errors">
         <xs:sequence>
            <xs:element name="Error" type="Error"minOccurs="0" maxOccurs="unbounded"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute/>
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="AuthorizeExpressCheckoutRequest"type="AuthorizeExpressCheckoutRequest"/>
     <xs:complexType name="AuthorizeExpressCheckoutRequest">
         <xs:sequence>
            <xs:element name="PreCheckoutTransactionId" type="xs:string"minOccurs="1"/>
            <xs:element name="CurrencyCode" type="xs:string"/>
            <xs:element name="OrderAmount" type="xs:long"/>
            <xs:element name="MerchantParameterId" type="xs:string"minOccurs="1"/>
            <xs:element name="OAuthToken" type="xs:string"minOccurs="1"/>
            <xs:element name="Errors" type="Errors"minOccurs="0"/>
            <xs:element name="AuthorizedExpressCheckout" type="AuthorizedCheckout"minOccurs="1"/>
            <xs:element name="DeviceType" minOccurs="0">
                <xs:simpleType>
                   <xs:restriction base="xs:string">
                       <xs:enumeration value="DESKTOP"/>
                       <xs:enumeration value="MOBILE"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="AuthorizedCheckout" type="AuthorizedCheckout"/>
     <xs:complexType name="AuthorizedCheckout">
         <xs:sequence>
            <xs:element name="Card" type="Card"/>
            <xs:element name="Contact" type="Contact"/>
            <xs:element name="ShippingAddress" type="ShippingAddress"minOccurs="0"/>
            <xs:element name="AuthenticationOptions" type="AuthenticationOptions"minOccurs="0"/>
            <xs:element name="RewardProgram" type="RewardProgram"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Card">
         <xs:sequence>
            <xs:element name="BrandId" type="NonEmptyString"/>
            <xs:element name="BrandName" type="NonEmptyString"/>
            <xs:element name="AccountNumber" type="NonEmptyString"/>
            <xs:element name="BillingAddress" type="Address"/>
            <xs:element name="CardHolderName" type="NonEmptyString"/>
            <xs:element name="ExpiryMonth" type="Month"minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Contact">
         <xs:sequence>
            <xs:element name="FirstName" type="NonEmptyString"/>
            <xs:element name="MiddleName" minOccurs="0">
                <xs:simpleType>
                   <xs:restriction base="xs:string">
                       <xs:minLength value="1"/>
                       <xs:maxLength value="150"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="LastName" type="NonEmptyString"/>
            <xs:element name="Gender" type="Gender"minOccurs="0"/>
            <xs:element name="DateOfBirth" type="DateOfBirth"minOccurs="0"/>
            <xs:element name="NationalID" minOccurs="0">
                <xs:simpleType>
                   <xs:restriction base="xs:string">
                       <xs:minLength value="1"/>
                       <xs:maxLength value="150"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Country" type="Country"/>
            <xs:element name="EmailAddress" type="EmailAddress"/>
            <xs:element name="PhoneNumber" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="ShippingAddress">
         <xs:complexContent>
            <xs:extension base="Address">
                <xs:sequence>
                   <xs:element name="RecipientName" type="NonEmptyString"/>
                   <xs:element name="RecipientPhoneNumber" type="xs:string"/>
                   <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
                </xs:sequence>
            </xs:extension>
         </xs:complexContent>
     </xs:complexType>
     <xs:complexType name="AuthenticationOptions">
         <xs:sequence>
            <xs:element name="AuthenticateMethod" type="xs:string"minOccurs="0"/>
            <xs:element name="CardEnrollmentMethod" type="xs:string"minOccurs="0"/>
            <xs:element name="CAvv" type="xs:string"minOccurs="0"/>
            <xs:element name="EciFlag" type="xs:string"minOccurs="0"/>
            <xs:element name="MasterCardAssignedID" type="xs:string"minOccurs="0"/>
            <xs:element name="PaResStatus" type="xs:string"minOccurs="0"/>
            <xs:element name="SCEnrollmentStatus" type="xs:string"minOccurs="0"/>
            <xs:element name="SignatureVerification" type="xs:string"minOccurs="0"/>
            <xs:element name="Xid" type="xs:string"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="RewardProgram">
         <xs:sequence>
            <xs:element name="RewardNumber" type="xs:string"/>
            <xs:element name="RewardId" type="xs:string"/>
            <xs:element name="RewardName" type="xs:string"minOccurs="0"/>
            <xs:element name="ExpiryMonth" type="Month"minOccurs="0"/>
            <xs:element name="ExpiryYear" type="Year"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:simpleType name="Month">
         <xs:restriction base="xs:int">
            <xs:minInclusive value="1"/>
            <xs:maxInclusive value="12"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="Year">
         <xs:restriction base="xs:int">
            <xs:minInclusive value="2013"/>
            <xs:pattern value="\d{4}"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="EmailAddress">
         <xs:restriction base="xs:string">
            <xs:pattern value="[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*@[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+(\.[A-Za-z0-9!#-'\*\+\-/=\?\^_`\{-~]+)*"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:simpleType name="Gender">
         <xs:restriction base="xs:token">
            <xs:enumeration value="M"/>
            <xs:enumeration value="F"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:complexType name="DateOfBirth">
         <xs:sequence>
            <xs:element name="Year">
                <xs:simpleType>
                   <xs:restriction base="xs:int">
                       <xs:minInclusive value="1900"/>
                       <xs:pattern value="\d{4}"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="Month" type="Month"/>
            <xs:element name="Day">
                <xs:simpleType>
                   <xs:restriction base="xs:int">
                       <xs:minInclusive value="1"/>
                       <xs:maxInclusive value="31"/>
                   </xs:restriction>
                </xs:simpleType>
            </xs:element>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Address">
         <xs:sequence>
            <xs:element name="City" type="NonEmptyString"/>
            <xs:element name="Country" type="Country"/>
            <xs:element name="CountrySubdivision" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="Line1" type="NonEmptyString"/>
            <xs:element name="Line2" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="Line3" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="PostalCode" type="NonEmptyString"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:simpleType name="Country">
         <xs:restriction base="xs:string">
            <xs:pattern value="[A-Z]{2}"/>
         </xs:restriction>
     </xs:simpleType>
     <xs:complexType name="Error">
         <xs:sequence>
            <xs:element name="Description" type="xs:string"minOccurs="0" />
            <xs:element name="ReasonCode" type="xs:string"/>
            <xs:element name="Recoverable" type="xs:boolean"/>
            <xs:element name="Source" type="xs:string"/>
            <xs:element name="Details" type="Details"minOccurs="0"
            maxOccurs="1" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Errors">
         <xs:sequence>
            <xs:element name="Error" type="Error"minOccurs="0"
            maxOccurs="unbounded" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Details">
         <xs:sequence>
            <xs:element name="Detail" type="Detail"minOccurs="0"
            maxOccurs="unbounded" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="Detail">
         <xs:sequence>
            <xs:element name="Name" type="xs:string"/>
            <xs:element name="Value" type="xs:string"/>
         </xs:sequence>
     </xs:complexType>
     <xs:simpleType name="NonEmptyString">
         <xs:restriction base="xs:string">
            <xs:minLength value="1" />
            <xs:whiteSpace value="collapse" />
         </xs:restriction>
     </xs:simpleType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0"encoding="UTF-8"?>
  <AuthorizeExpressCheckoutRequest>
     <PreCheckoutTransactionId>a4d6x6s-tqda3l-hxrmfvag-1-hxroo2ac-2pb</PreCheckoutTransactionId>
     <CurrencyCode>USD</CurrencyCode>
     <OrderAmount>100</OrderAmount>
     <MerchantParameterId>a4d6x6s-tqda3l-hxrmfvag-1-hxrooyy5-2vu</MerchantParameterId>
     <OAuthToken>86ce9346b1dddbb40f379017fe375337b2e40932</OAuthToken>
     <AuthorizedExpressCheckout>
         <Card>
            <BrandId>Master</BrandId>
            <BrandName>MasterCard</BrandName>
            <AccountNumber>5435579315709649</AccountNumber>
            <BillingAddress>
                <City>Eureka</City>
                <Country>US</Country>
                <CountrySubdivision>US-MO</CountrySubdivision>
                <Line1>1 Address Line</Line1>
                <PostalCode>63025</PostalCode>
            </BillingAddress>
            <CardHolderName>Lee M Cardholder</CardHolderName>
            <ExpiryMonth>01</ExpiryMonth>
            <ExpiryYear>2016</ExpiryYear>
         </Card>
         <Contact>
            <FirstName>Lee</FirstName>
            <MiddleName>M</MiddleName>
            <LastName>Cardholder</LastName>
            <Gender>M</Gender>
            <DateOfBirth>
                <Year>1954</Year>
                <Month>03</Month>
                <Day>11</Day>
            </DateOfBirth>
            <NationalID>1234</NationalID>
            <Country>US</Country>
            <EmailAddress>11234@gmail.com</EmailAddress>
            <PhoneNumber>3144873456</PhoneNumber>
         </Contact>
         <ShippingAddress>
            <City>Eureka</City>
            <Country>US</Country>
            <CountrySubdivision>US-MO</CountrySubdivision>
            <Line1>Line1</Line1>
            <PostalCode>63025</PostalCode>
            <RecipientName>RecipientName</RecipientName>
            <RecipientPhoneNumber>RecipientPhoneNumber</RecipientPhoneNumber>
         </ShippingAddress>
         <RewardProgram/>
     </AuthorizedExpressCheckout>
     <OriginUrl>http://OriginUrl.com</OriginUrl>
     <DeviceType>DESKTOP</DeviceType>
  </AuthorizeExpressCheckoutRequest>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"version="1.0">
     <xs:element name="AuthorizeExpressCheckoutResponse" type="AuthorizeExpressCheckoutResponse" />
     <xs:complexType name="AuthorizeExpressCheckoutResponse">
         <xs:sequence>
            <xs:element name="Status" type="xs:string" minOccurs="0" />
            <xs:element name="ExtensionPoint" type="ExtensionPoint" minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint" />
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax" namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8"?>
  <AuthorizeExpressCheckoutResponse>
    <Status>Status</Status>
  </AuthorizeExpressCheckoutResponse>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:element name="ConnectedMerchantsRequest"/>
  <xs:complexType name="ConnectedMerchantsRequest">
     <xs:sequence>
         <xs:element name="ConsumerWalletId" type="xs:string"/>
         <xs:element name="WalletId" type="xs:string"/>
         <xs:element name="StartDate" type="xs:dateTime"/>
         <xs:element name="EndDate" type="xs:dateTime"/>
         <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
     </xs:sequence>
  </xs:complexType>
  <xs:element name="ExtensionPoint"type="ExtensionPoint"/>
  <xs:complexType name="ExtensionPoint">
     <xs:sequence>
         <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
     </xs:sequence>
     <xs:anyAttribute />
  </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <ConnectedMerchantsRequest>
     <ConsumerWalletId>11235813</ConsumerWalletId>
     <WalletId>PHWallet</WalletId>
  </ConnectedMerchantsRequest>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="Connection" type="Connection"/>
     <xs:complexType name="Connection">
         <xs:sequence>
            <xs:element name="ConnectionId" type="xs:long"/>
            <xs:element name="MerchantName" type="xs:string"/>
            <xs:element name="ConnectionName" type="xs:string"/>
            <xs:element name="Logo" type="Logo"/>
            <xs:element name="DataTypes" type="DataTypes"/>
            <xs:element name="OneClickSupported" type="xs:boolean"/>
            <xs:element name="OneClickEnabled" type="xs:boolean"/>
            <xs:element name="LastUpdatedUsed" type="xs:dateTime"/>
            <xs:element name="ConnectedSinceDate" type="xs:dateTime"/>
            <xs:element name="ExpirationDate" type="xs:dateTime"/>
            <xs:element name="MerchantUrl" type="xs:anyURI"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ConnectionList" type="ConnectionList"/>
     <xs:complexType name="ConnectionList">
         <xs:sequence>
            <xs:element name="Connection" type="Connection"minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="Logo" type="Logo"/>
     <xs:complexType name="Logo">
         <xs:sequence>
            <xs:element name="Ref" type="xs:string"/>
            <xs:element name="Height" type="xs:string"minOccurs="0"/>
            <xs:element name="Width" type="xs:string"minOccurs="0"/>
            <xs:element name="BackgroundColor" type="xs:string"minOccurs="0"/>
            <xs:element name="Url" type="xs:anyURI"minOccurs="0"/>
            <xs:element name="LongDescription" type="xs:string"minOccurs="0"/>
            <xs:element name="AlternateText" type="xs:string"minOccurs="0"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="DataTypes" type="DataTypes"/>
     <xs:complexType name="DataTypes">
         <xs:sequence>
            <xs:element name="Code" type="xs:string"/>
            <xs:element name="Description" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0"encoding="UTF-8"?>
  <ConnectionList>
     <Connection>
         <ConnectionId>13348706</ConnectionId>
         <MerchantName>Best Merchant</MerchantName>
         <Logo>
            <Url>../assets/img/merchant_icon.png</Url>
            <AlternateText>banana.PNG</AlternateText>
         </Logo>
         <OneClickSupported>false</OneClickSupported>
         <OneClickEnabled>true</OneClickEnabled>
         <ConnectedSinceDate>07/29/2014</ConnectedSinceDate>
         <MerchantUrl>http://bestmerchant.com/testexample</MerchantUrl>
     </Connection>
     <Connection>
         <ConnectionId>13317574</ConnectionId>
         <MerchantName>Awesome Merchant</MerchantName>
         <Logo>
            <Url>../assets/img/merchant_icon.png</Url>
         </Logo>
         <OneClickSupported>false</OneClickSupported>
         <OneClickEnabled>false</OneClickEnabled>
         <ConnectedSinceDate>07/28/2014</ConnectedSinceDate>
         <MerchantUrl>https://awesomemerchant.com/testexample</MerchantUrl>
     </Connection>
  </ConnectionList>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="DeletePairingRequest" type="DeletePairingRequest"/>
     <xs:complexType name="DeletePairingRequest">
         <xs:sequence>
            <xs:element name="ConsumerWalletId" type="xs:string"/>
            <xs:element name="WalletId" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"
            minOccurs="0" />
            <xs:element name="ConnectionId" type="xs:string"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <DeletePairingRequest>
     <MerchantName>AnyMerchant</MerchantName>
     <ConsumerWalletId>11235813</ConsumerWalletId>
     <WalletId>12916</WalletId>
     <ConnectionId>634483</ConnectionId>
  </DeletePairingRequest>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0">
     <xs:element name="DeletePairingResponse" type="DeletePairingResponse"/>
     <xs:complexType name="DeletePairingResponse">
         <xs:sequence>
            <xs:element name="StatusMsg" type="xs:string"/>
            <xs:element name="Errors" type="Errors"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:element name="Error" type="Error"/>
     <xs:complexType name="Error">
         <xs:sequence>
            <xs:element name="Description" type="xs:string"/>
            <xs:element name="ReasonCode" type="xs:string"/>
            <xs:element name="Recoverable" type="xs:boolean"/>
            <xs:element name="Source" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="Errors" type="Errors"/>
     <xs:complexType name="Errors">
         <xs:sequence>
            <xs:element name="Error" type="Error"minOccurs="0" maxOccurs="unbounded"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <DeletePairingResponse>
     <StatusMsg>Success</StatusMsg>
     <Errors>
         <Error>
            <Description>Description</Description>
            <ReasonCode>ReasonCode</ReasonCode>
            <Recoverable>true</Recoverable>
            <Source>Source</Source>
         </Error>
     </Errors>
  </DeletePairingResponse>


  <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
  <xs:schema version="1.0"xmlns:xs="http://www.w3.org/2001/XMLSchema">
     <xs:element name="rewardProgramOfferingsResponse"type="rewardProgramOfferingsResponse"/>
     <xs:complexType name="rewardProgramOffering">
         <xs:sequence>
            <xs:element name="Id" type="xs:string"/>
            <xs:element name="Logo" type="xs:string"/>
            <xs:element name="Name" type="xs:string"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="rewardProgramOfferings">
         <xs:sequence>
            <xs:element name="RewardProgramOffering" type="rewardProgramOffering"maxOccurs="unbounded"/>
            <xs:element name="ExtensionPoint" type="ExtensionPoint"minOccurs="0" />
         </xs:sequence>
     </xs:complexType>
     <xs:complexType name="rewardProgramOfferingsResponse">
         <xs:sequence>
            <xs:element name="RewardProgramOfferings" type="rewardProgramOfferings"/>
         </xs:sequence>
     </xs:complexType>
     <xs:element name="ExtensionPoint" type="ExtensionPoint"/>
     <xs:complexType name="ExtensionPoint">
         <xs:sequence>
            <xs:any maxOccurs="unbounded" processContents="lax"namespace="##any" />
         </xs:sequence>
         <xs:anyAttribute />
     </xs:complexType>
  </xs:schema>


  <rewardProgramOfferingsResponse>
     <RewardProgramOfferings>
         <RewardProgramOffering>
            <Id>xbrand</Id>     <Logo>https://www.paypass.com/online/seam/resource/rewardOfferImage?id=xbrand</Logo>
            <Name>X Brand</Name>
         </RewardProgramOffering>
         <RewardProgramOffering>
            <Id>ybrand</Id>     <Logo>https://www.paypass.com/online/seam/resource/rewardOfferImage?id=ybrand</Logo>
            <Name>Y Brand</Name>
         </RewardProgramOffering>
     </RewardProgramOfferings>
  </rewardProgramOfferingsResponse>


l7hcrmmrp9ld5tsum2inic2a83p676s1qj2cb4ng5df8q0utmvd

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<Card>
   <BrandID>master</BrandID>
   <AccountNumber>5435579315709649</AccountNumber>
   <BillingAddress>
       <Line1>2000 Purchase Street</Line1>
       <City>Purchase</City>
       <CountrySubdivision>US-NY</CountrySubdivision>
      <Country>US</Country>
       <PostalCode>10577</PostalCode>
   </BillingAddress>
   <CardHolderName>Lee M Cardholder</CardHolderName>
   <ExpiryMonth>5</ExpiryMonth>
   <ExpiryYear>2016</ExpiryYear>
</Card>

11dgjje9suejvk3j3ssvmgjflr3mhgu9oi8gano6kuainnjkt22f

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <Wallet>
     <Card>
         <ID>1k8t5p5p05a5pohut86spv2ku1unmrhs81lqouu716kdoq37bl46</ID>
         <BrandID>master</BrandID>
         <AccountNumber>5435579315709649</AccountNumber>
         <BillingAddress>
            <Line1>2000 Purchase Street</Line1>
            <City>Purchase</City>
            <CountrySubdivision>US-NY</CountrySubdivision>
            <Country>US</Country>
            <PostalCode>10577</PostalCode>
         </BillingAddress>
         <CardHolderName>Lee M Cardholder</CardHolderName>
         <ExpiryMonth>5</ExpiryMonth>
         <ExpiryYear>2016</ExpiryYear>
     </Card>
  </Wallet>


Response Code: 204

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:complexType name="Address">
      <xs:sequence>
        <xs:element name="Line1" type="xs:string"/>
        <xs:element name="Line2" type="xs:string" minOccurs="0"/>
        <xs:element name="Line3" type="xs:string" minOccurs="0"/>
        <xs:element name="City" type="xs:string"/>
        <xs:element name="CountrySubdivision" type="xs:string" minOccurs="0"/>
        <xs:element name="Country" type="xs:string"/>
        <xs:element name="PostalCode" type="xs:string" minOccurs="0"/>
      </xs:sequence>
    </xs:complexType>
    <xs:complexType name="Card">
      <xs:sequence>
        <xs:element name="ID" type="xs:string" minOccurs="0"/>
        <xs:element name="BrandID" type="xs:string"/>
        <xs:element name="ArtPointer" type="xs:anyURI" minOccurs="0"/>
        <xs:element name="AccountNumber" type="xs:string"/>
        <xs:element name="BillingAddress" type="Address"/>
        <xs:element name="CardHolderName" type="xs:string"/>
        <xs:element name="ExpiryMonth" type="xs:string" minOccurs="0"/>
        <xs:element name="ExpiryYear" type="xs:string" minOccurs="0"/>
        <xs:element name="Default" type="xs:boolean" minOccurs="0"/>
      </xs:sequence>
    </xs:complexType>
  </xs:schema>


  <Card>
     <BrandID>master</BrandID>
     <AccountNumber>5435579315709649</AccountNumber>
     <BillingAddress>
         <Line1>2000 Purchase Street</Line1>
         <City>Purchase</City>
         <CountrySubdivision>US-NY</CountrySubdivision>
         <Country>US</Country>
         <PostalCode>10577</PostalCode>
     </BillingAddress>
     <CardHolderName>Lee M Cardholder</CardHolderName>
     <ExpiryMonth>5</ExpiryMonth>
     <ExpiryYear>2016</ExpiryYear>
  </Card>

1l0fvmhvbcilko209lbm7ta7pku2t2niq00bc627egegvaki1121

  <Wallet>
   <Card>
       <ID>1k8t5p5p05a5pohut86spv2ku1unmrhs81lqouu716kdoq37bl46</ID>
       <BrandID>master</BrandID>
       <AccountNumber>5435579315709649</AccountNumber>
       <BillingAddress>
          <Line1>2000 Purchase Street</Line1>
          <City>Purchase</City>
          <CountrySubdivision>US-NY</CountrySubdivision>
          <Country>US</Country>
          <PostalCode>10577</PostalCode>
       </BillingAddress>
       <CardHolderName>Lee M Cardholder</CardHolderName>
       <ExpiryMonth>5</ExpiryMonth>
       <ExpiryYear>2016</ExpiryYear>
   </Card>
</Wallet>

  <Card>
     <ID>1k8t5p5p05a5pohut86spv2ku1unmrhs81lqouu716kdoq37bl46</ID>
     <BrandID>master</BrandID>
     <AccountNumber>5435579315709649</AccountNumber>
     <BillingAddress>
         <Line1>2000 Purchase Street</Line1>
         <City>Eureka</City>
         <CountrySubdivision>US-MO</CountrySubdivision>
         <Country>US</Country>
         <PostalCode>63038</PostalCode>
     </BillingAddress>
     <CardHolderName>Lee M Cardholder</CardHolderName>
     <ExpiryMonth>5</ExpiryMonth>
     <ExpiryYear>2020</ExpiryYear>
  </Card>


Response Code: 204

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:complexType name="Address">
      <xs:sequence>
        <xs:element name="Line1" type="xs:string"/>
        <xs:element name="Line2" type="xs:string" minOccurs="0"/>
        <xs:element name="Line3" type="xs:string" minOccurs="0"/>
        <xs:element name="City" type="xs:string"/>
        <xs:element name="CountrySubdivision" type="xs:string" minOccurs="0"/>
        <xs:element name="Country" type="xs:string"/>
        <xs:element name="PostalCode" type="xs:string" minOccurs="0"/>
      </xs:sequence>
    </xs:complexType>
    <xs:complexType name="PhoneNumber">
      <xs:sequence>
        <xs:element name="CountryCode" type="xs:string"/>
        <xs:element name="Number" type="xs:string"/>
      </xs:sequence>
    </xs:complexType>
    <xs:complexType name="ShippingAddress">
      <xs:complexContent>
        <xs:extension base="Address">
          <xs:sequence>
            <xs:element name="ID" type="xs:string" minOccurs="0"/>
            <xs:element name="RecipientName" type="xs:string"/>
            <xs:element name="RecipientPhoneNumber" type="PhoneNumber"/>
            <xs:element name="Default" type="xs:boolean" minOccurs="0"/>
          </xs:sequence>
        </xs:extension>
      </xs:complexContent>
    </xs:complexType>
  </xs:schema>

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <ShippingAddress>
     <Line1>2000 Purchase Street</Line1>
     <City>Purchase</City>
     <CountrySubdivision>US-NY</CountrySubdivision>
     <Country>US</Country>
     <PostalCode>10577</PostalCode>
     <RecipientName>Lee M Cardholder</RecipientName>
     <RecipientPhoneNumber>
         <CountryCode>1</CountryCode>
         <Number>6367227111</Number>
     </RecipientPhoneNumber>
  </ShippingAddress>


b3s3kp6d8uiin4g993h6bcs9kpatiuqal4spjj63pkeatj32c18

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <ShippingAddress>
     <Line1>2000 Purchase Street</Line1>
     <City>Purchase</City>
     <CountrySubdivision>US-NY</CountrySubdivision>
     <Country>US</Country>
     <PostalCode>10577</PostalCode>
     <ID>b3s3kp6d8uiin4g993h6bcs9kpatiuqal4spjj63pkeatj32c18</ID>
     <RecipientName>Lee M Cardholder</RecipientName>
     <RecipientPhoneNumber>
         <CountryCode>1</CountryCode>
         <Number>6367227111</Number>
     </RecipientPhoneNumber>
  </ShippingAddress>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <ShippingAddress>
     <Line1>2000 Purchase Street</Line1>
     <City>Purchase</City>
     <CountrySubdivision>US-NY</CountrySubdivision>
     <Country>US</Country>
     <PostalCode>10577</PostalCode>
     <ID>b3s3kp6d8uiin4g993h6bcs9kpatiuqal4spjj63pkeatj32c18</ID>
     <RecipientName>Lee M Cardholder</RecipientName>
     <RecipientPhoneNumber>
         <CountryCode>1</CountryCode>
         <Number>6367227111</Number>
     </RecipientPhoneNumber>
  </ShippingAddress>


Response code: 204

Response code: 204

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:complexType name="RewardProgram">
      <xs:sequence>
        <xs:element name="ID" type="xs:string" minOccurs="0"/>
        <xs:element name="ProgramID" type="xs:string"/>
        <xs:element name="Number" type="xs:string"/>
        <xs:element name="ExpiryMonth" type="xs:string" minOccurs="0"/>
        <xs:element name="ExpiryYear" type="xs:string" minOccurs="0"/>
      </xs:sequence>
    </xs:complexType>
  </xs:schema>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <RewardProgram>
     <ProgramID>areward</ProgramID>
     <Number>1234567890123456</Number>
     <ExpiryMonth>05</ExpiryMonth>
     <ExpiryYear>2016</ExpiryYear>
  </RewardProgram>

um25en82ahaht65ipattd3871khnf7keitss7crmprng32n6u0f

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <RewardProgram xmlns:ns2="http://types.pws2.ppol.mastercard.com">
     <ID>um25en82ahaht65ipattd3871khnf7keitss7crmprng32n6u0f</ID>
     <ProgramID>areward</ProgramID>
     <Number>1234567890123456</Number>
     <ExpiryMonth>05</ExpiryMonth>
     <ExpiryYear>2016</ExpiryYear>
  </RewardProgram>


  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <RewardProgram xmlns:ns2="http://types.pws2.ppol.mastercard.com">
     <ID>um25en82ahaht65ipattd3871khnf7keitss7crmprng32n6u0f</ID>
     <ProgramID>areward</ProgramID>
     <Number>1234567890123456</Number>
     <ExpiryMonth>05</ExpiryMonth>
     <ExpiryYear>2020</ExpiryYear>
  </RewardProgram>


Response code: 204

Response code: 204

  <xs:schema version="1.0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <xs:element name="Errors" type="Errors"/>
    <xs:complexType name="Error">
      <xs:sequence>
        <xs:element name="Description" type="xs:string" minOccurs="0"/>
        <xs:element name="ReasonCode" type="xs:string"/>
        <xs:element name="Recoverable" type="xs:boolean"/>
        <xs:element name="Source" type="xs:string"/>
      </xs:sequence>
    </xs:complexType>
  <xs:complexType name="Errors">
      <xs:sequence>
        <xs:element name="Error" type="Error" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
    </xs:complexType>
  </xs:schema>
